lift and slide doors
All Aluminum IMPACT (LIS.10)
Explore All Aluminum IMPACT (LIS.10) for impact-rated projects. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for impact-rated projects
Designed for extreme weather conditions, this system ensures maximum protection while offering smooth operation and an elegant all-aluminum finish.
All Aluminum IMPACT (LIS.10): maximum panel height 252"; maximum panel width 192"; stile 3 ¹⁵⁄₁₆"; style Modern.
Start with the project address, required positive and negative design pressures, opening dimensions and substrate. The approval number and approved installation detail must match the exact system being quoted.
This system appears in the impact-rated range. Confirm the exact approval, size, glazing, substrate and anchoring for your project. General size limits do not establish an approved impact configuration.

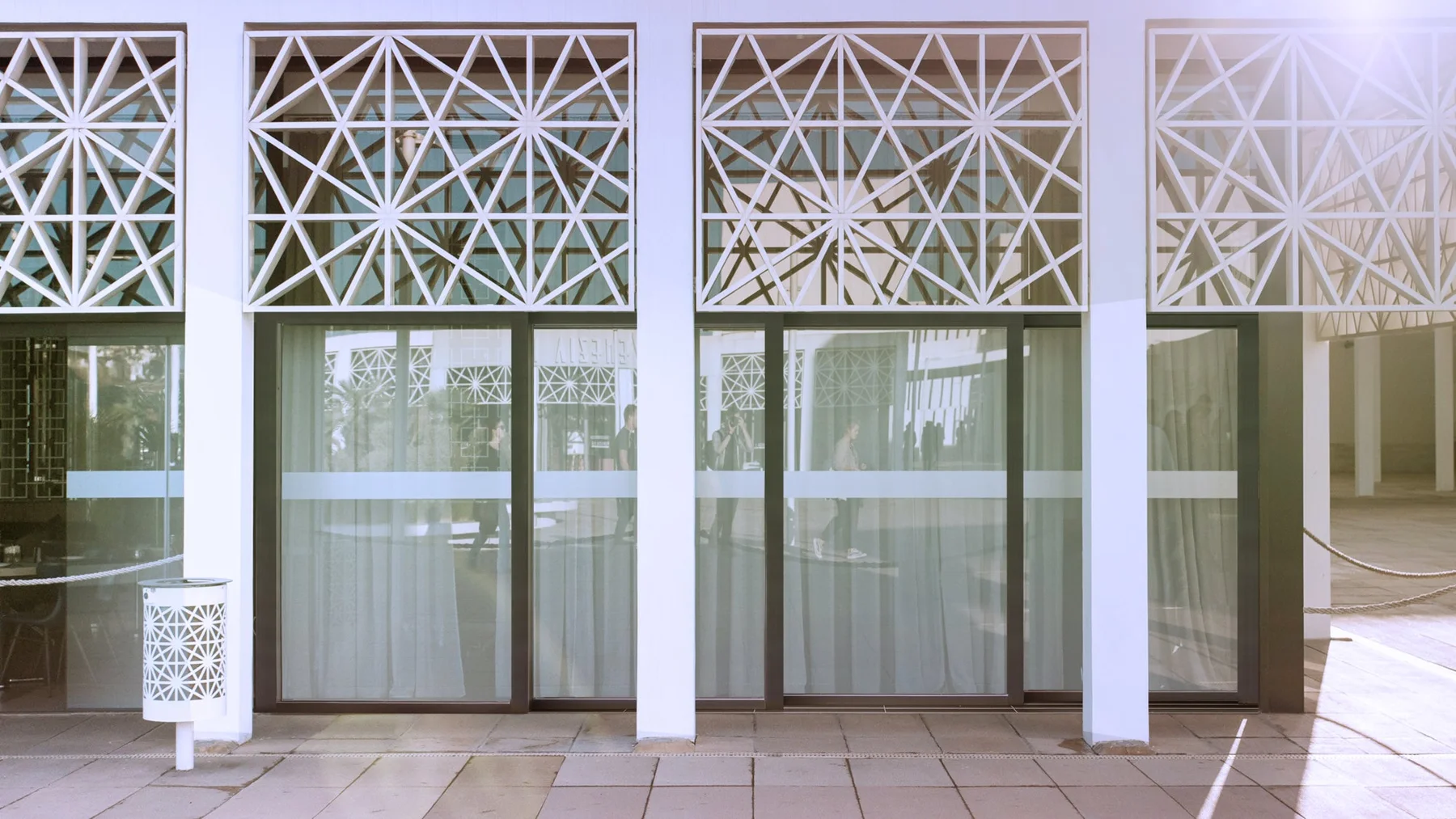

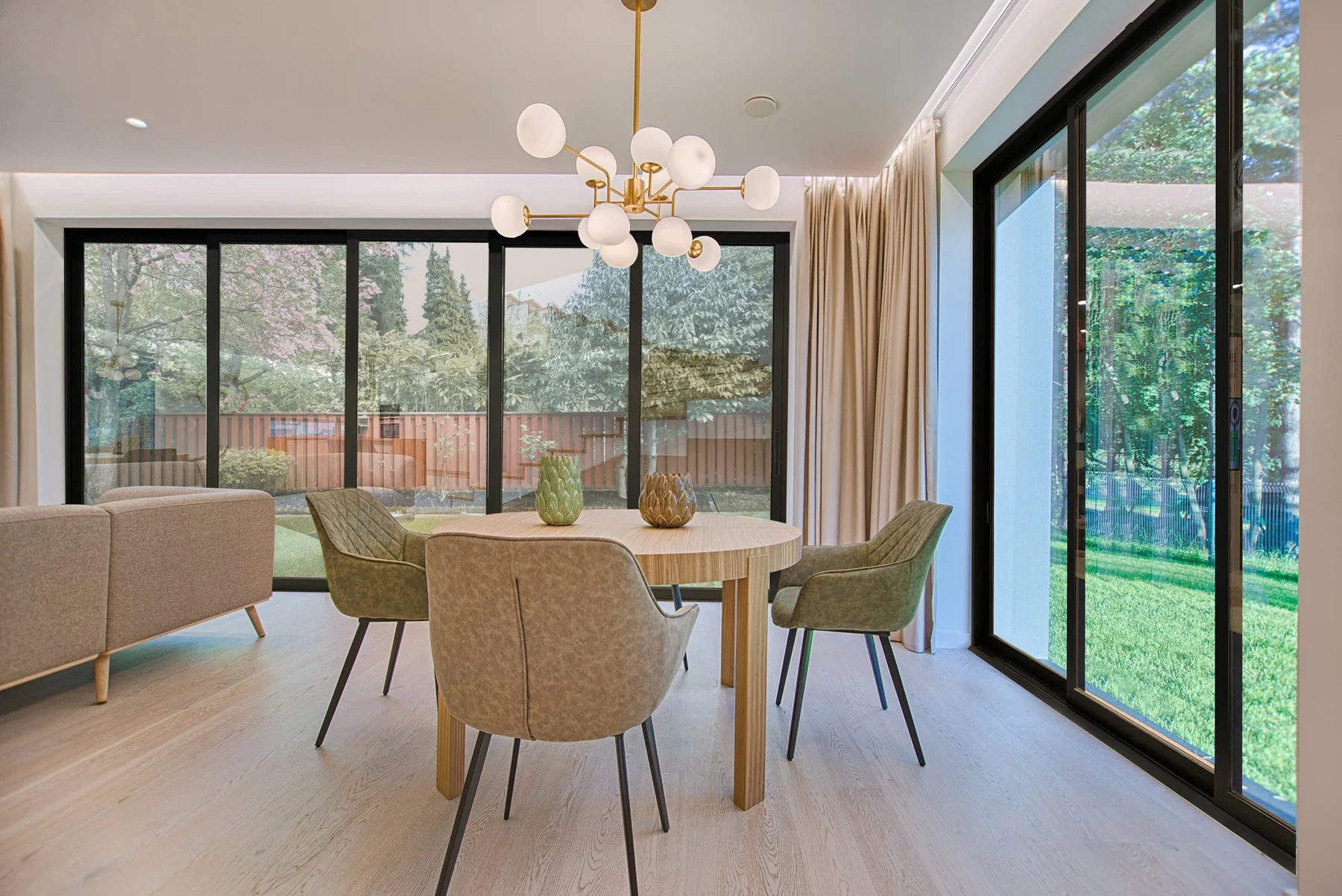

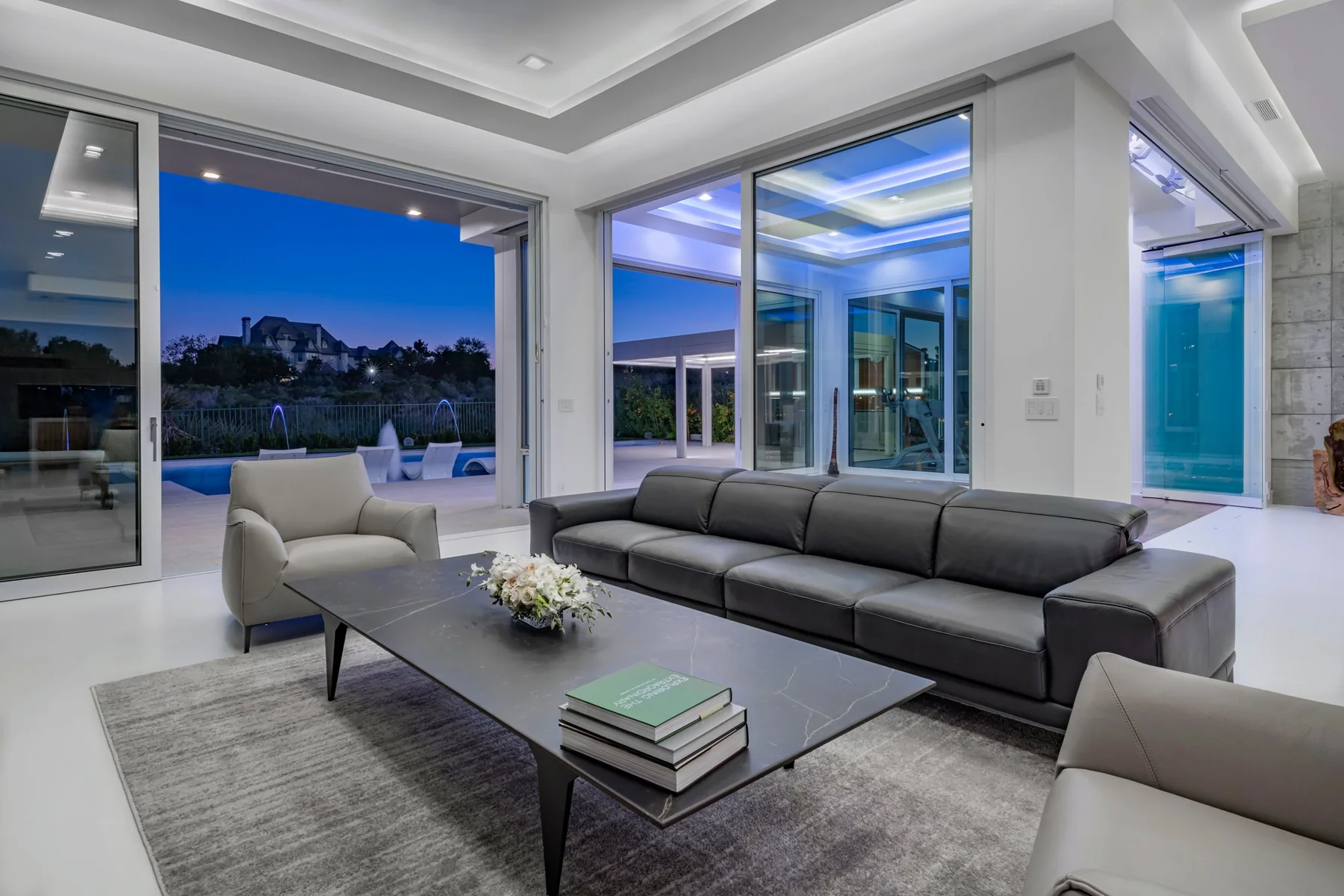

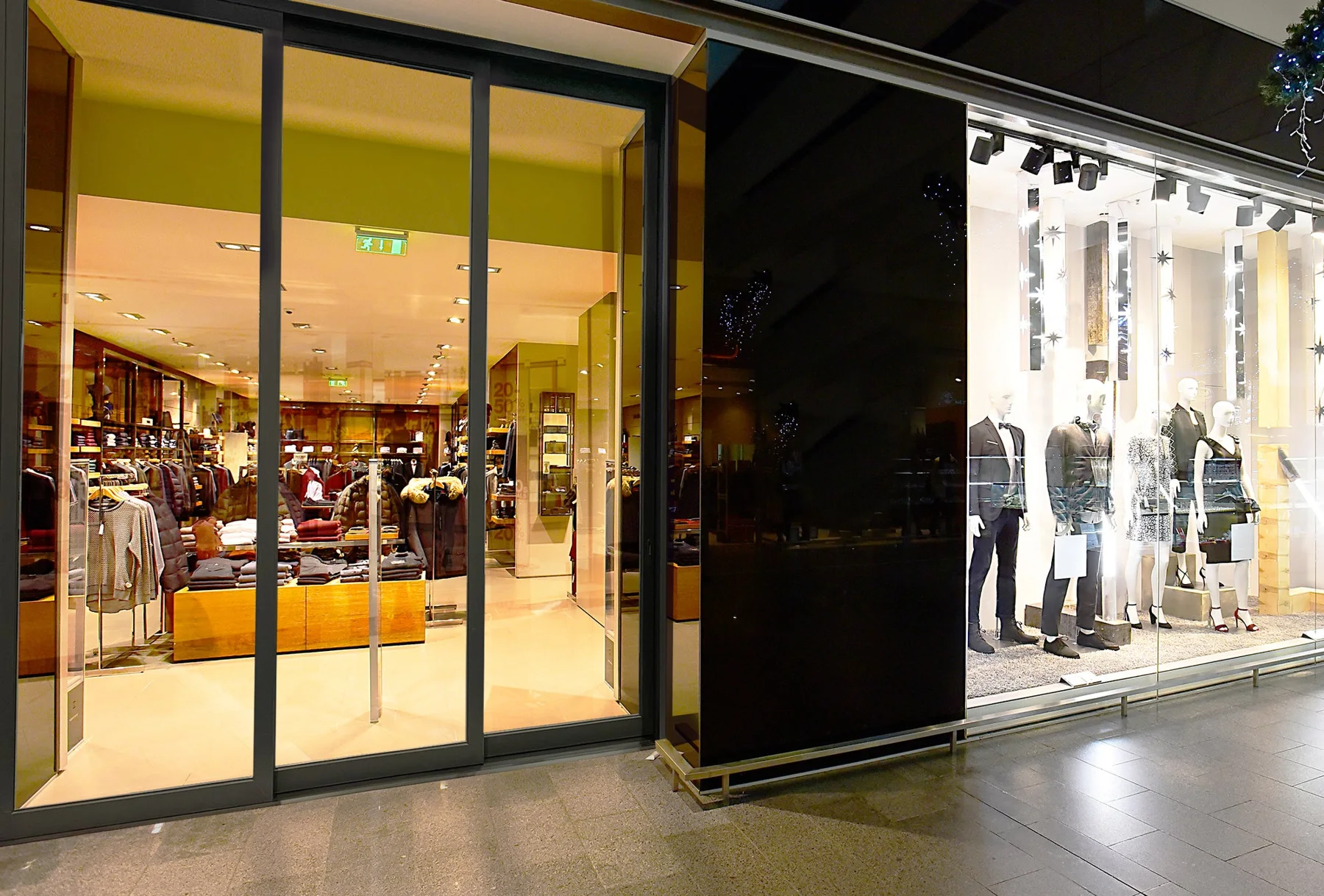

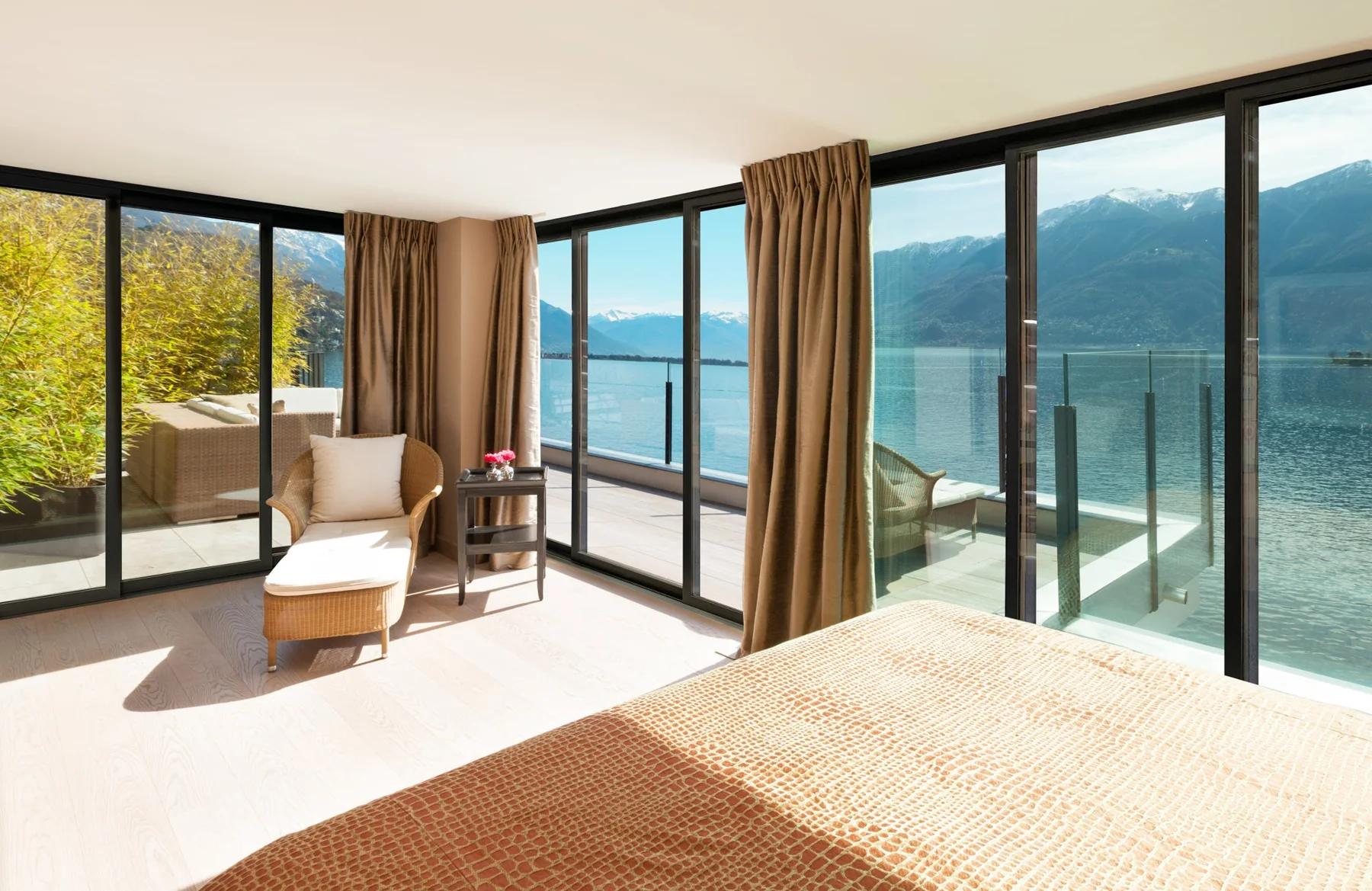

Photography & design details
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes

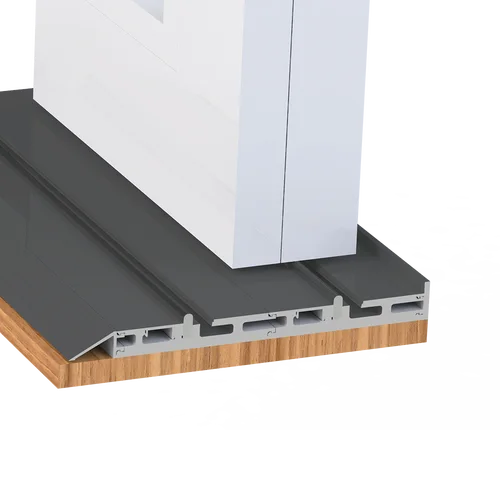

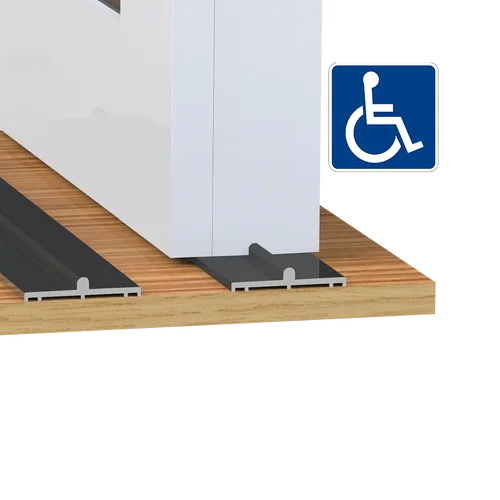

Surface Tracks

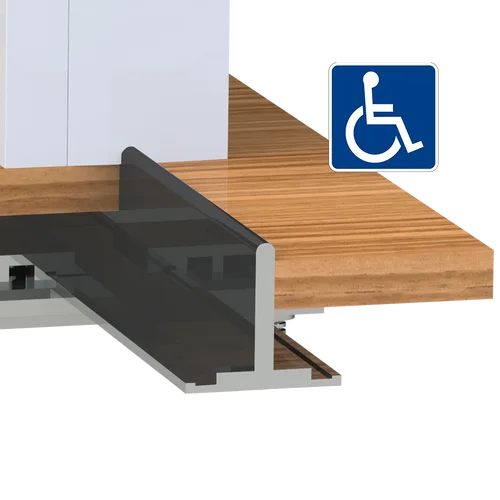

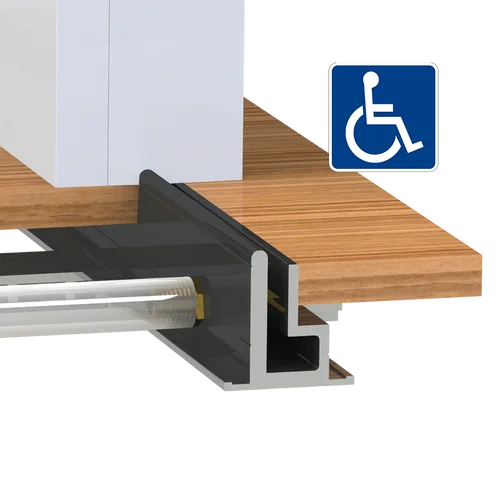

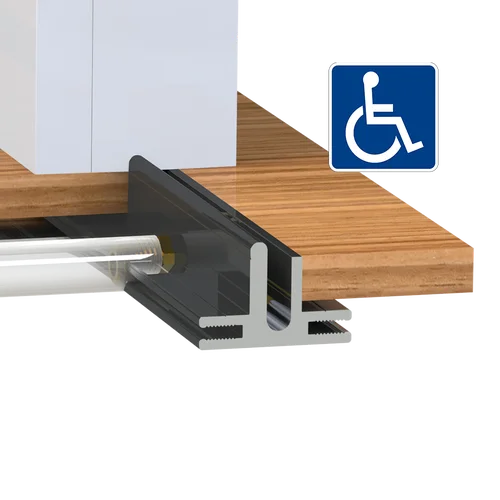

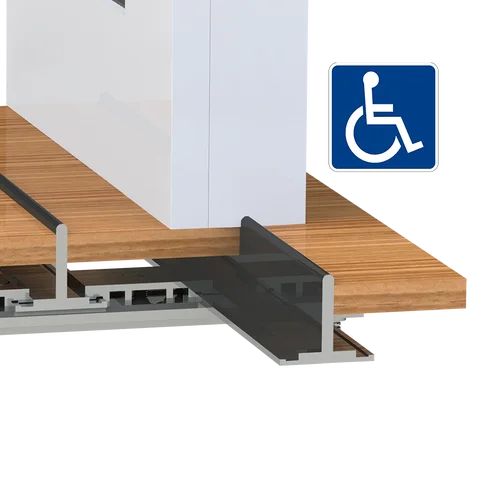

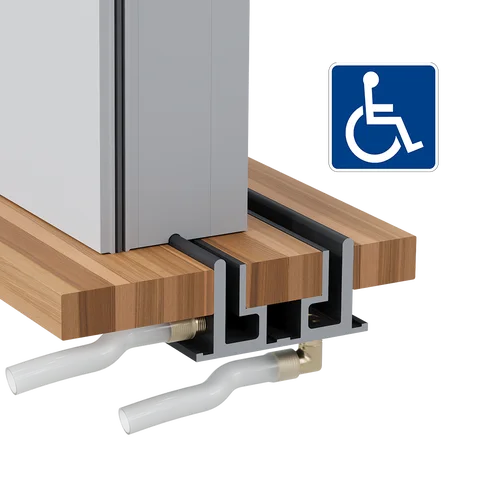

Recessed Tracks

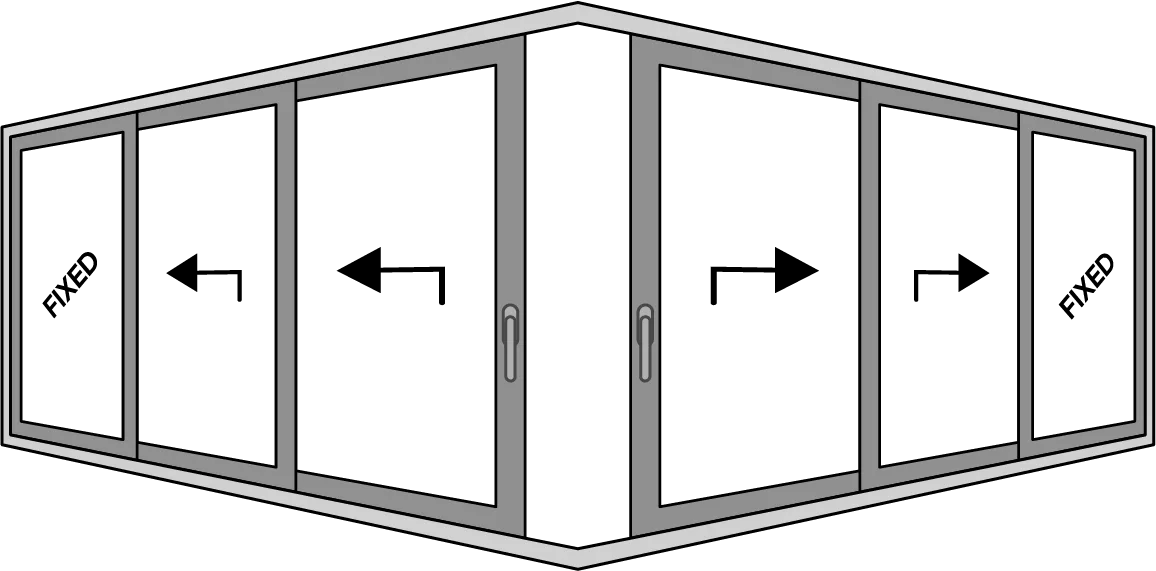

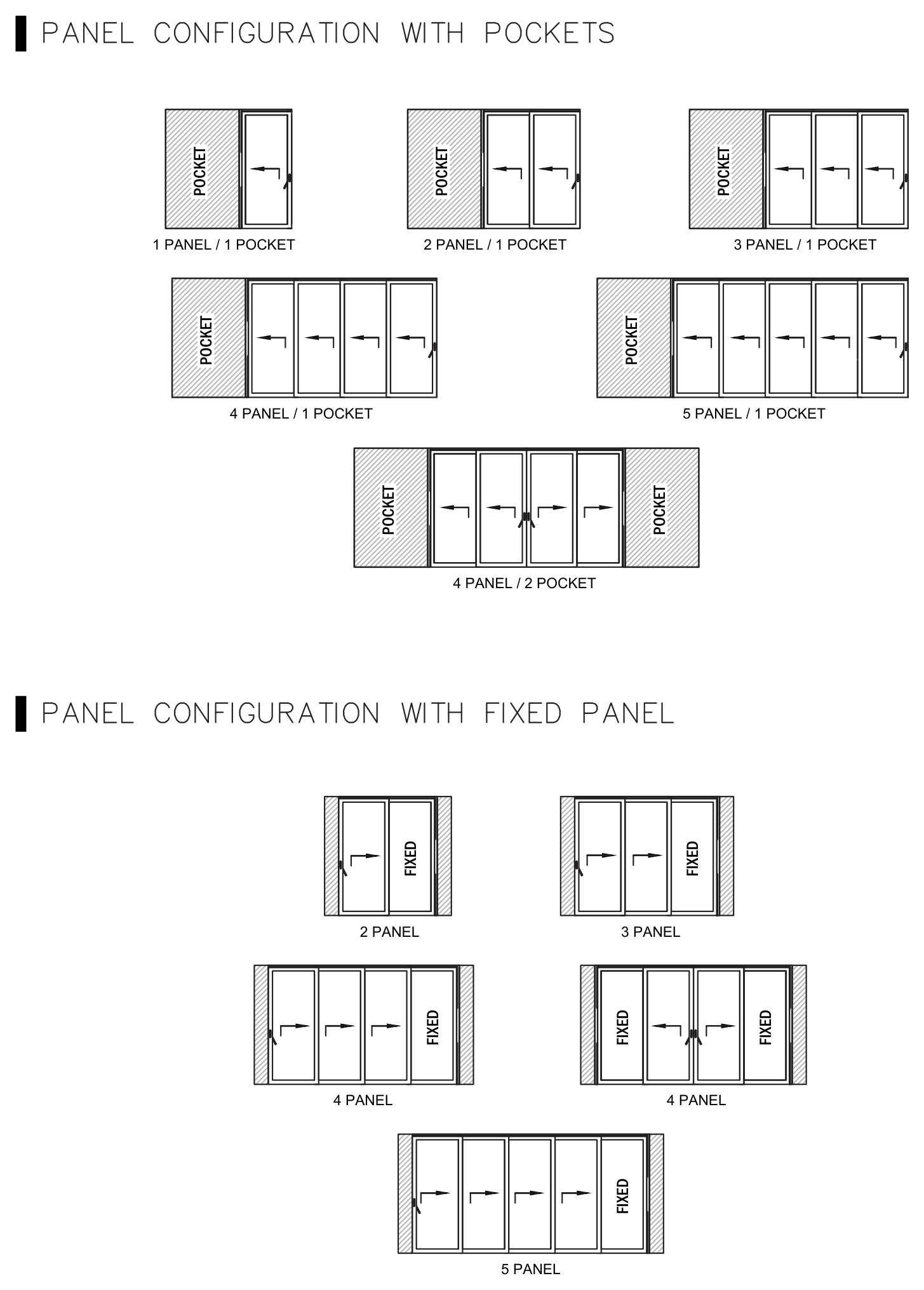

Configurations
Handles

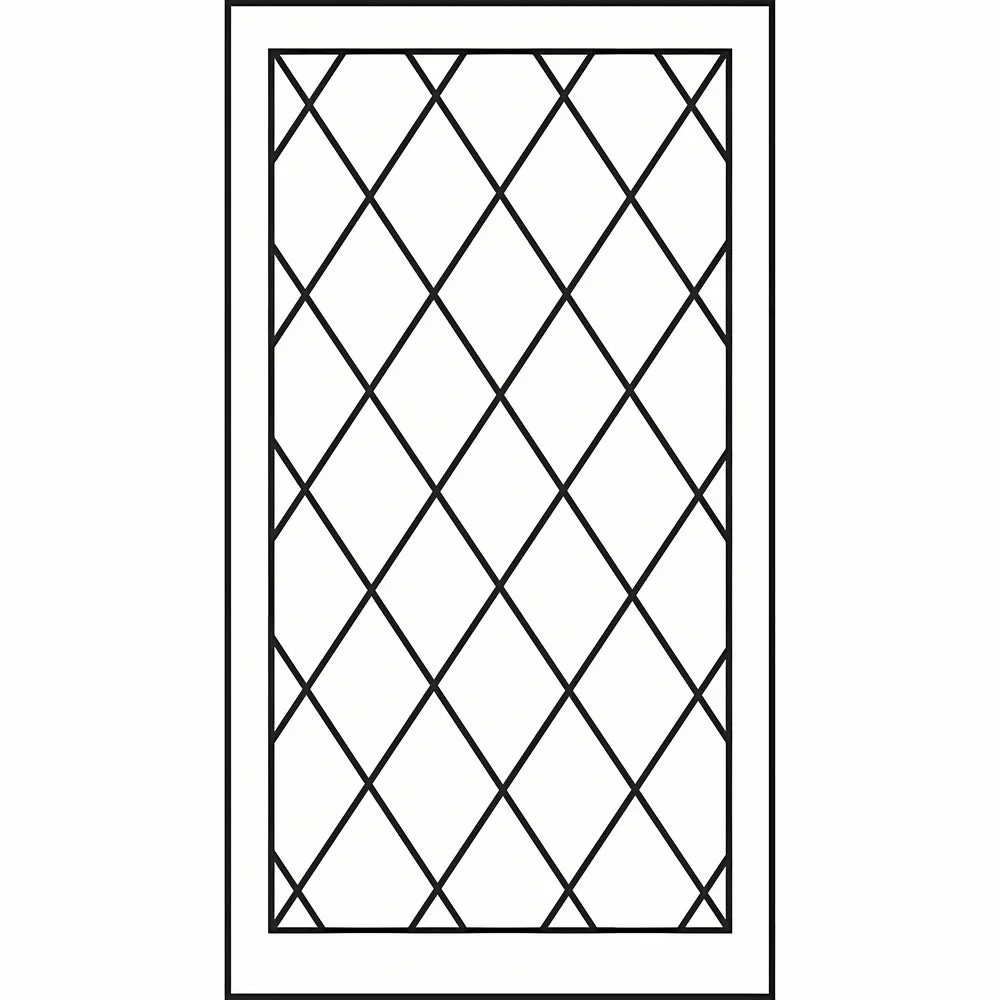

Divided Lites

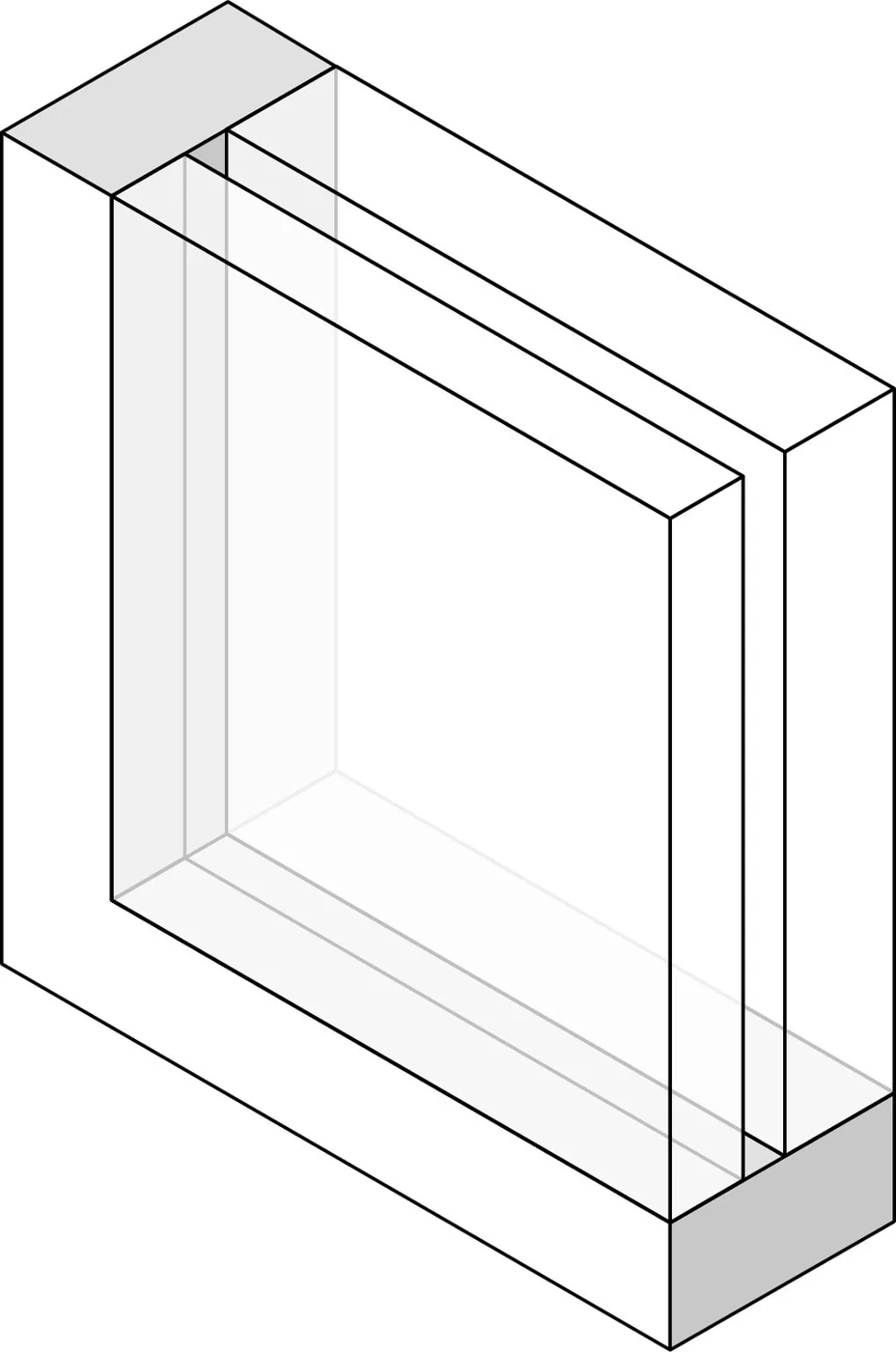

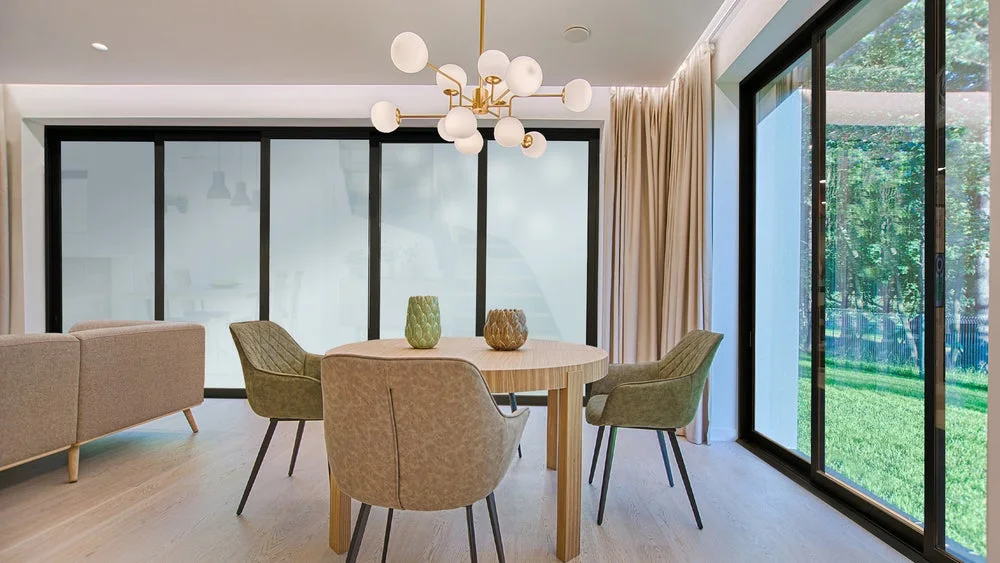

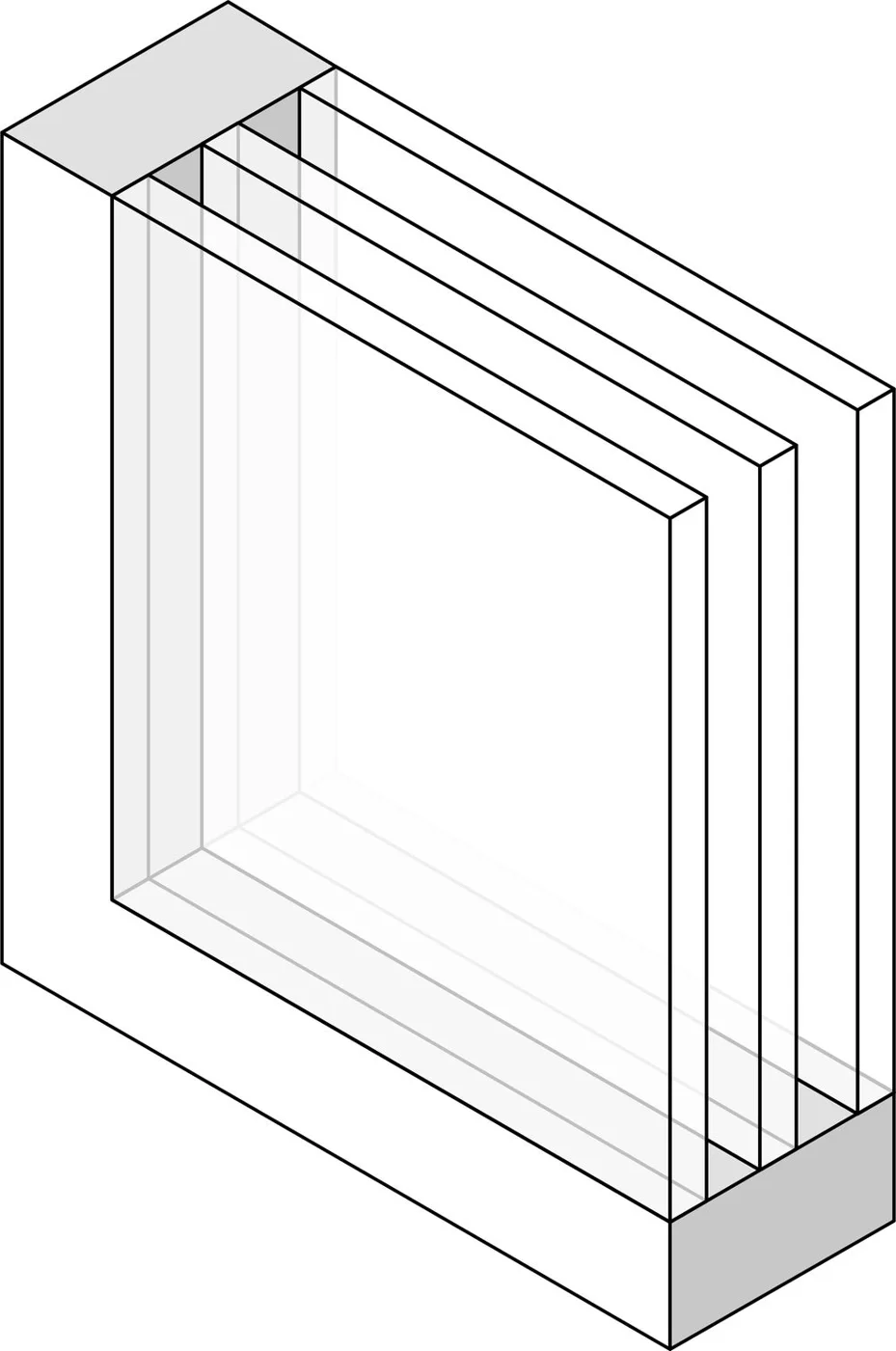

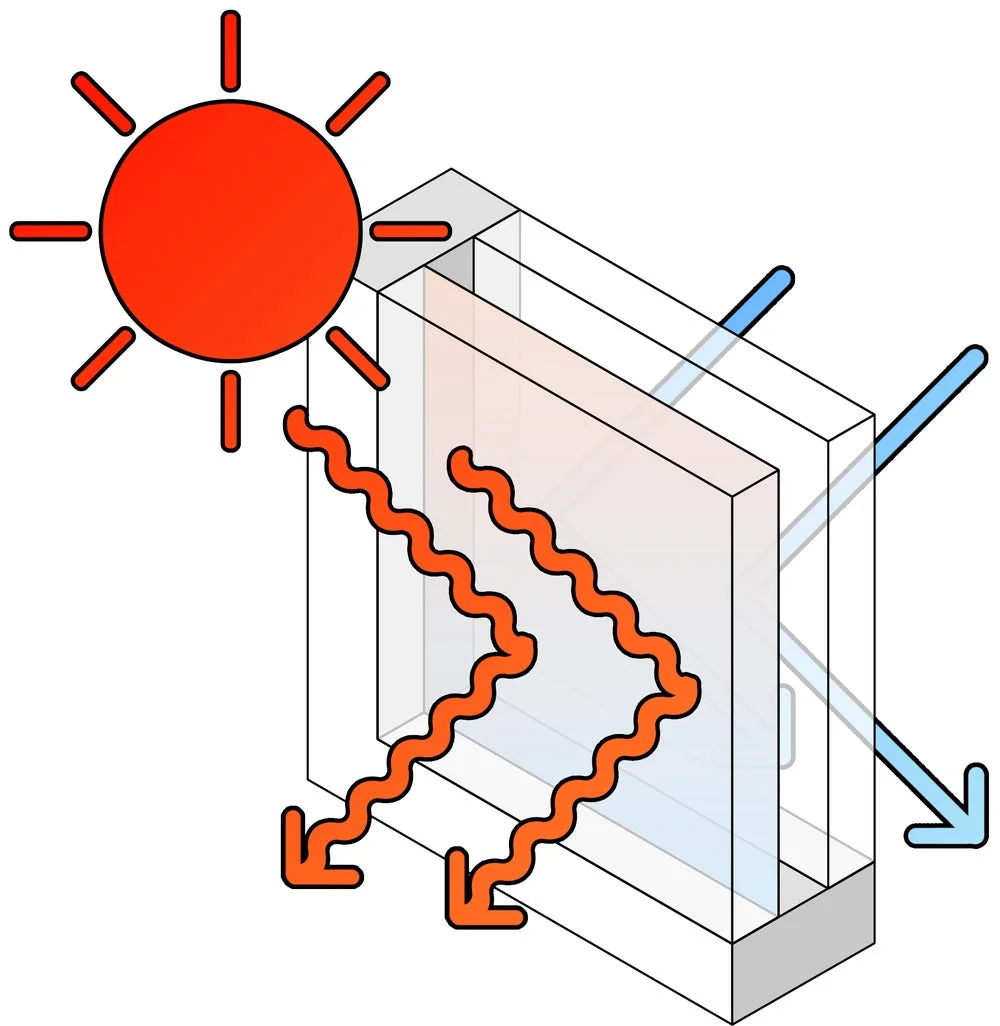

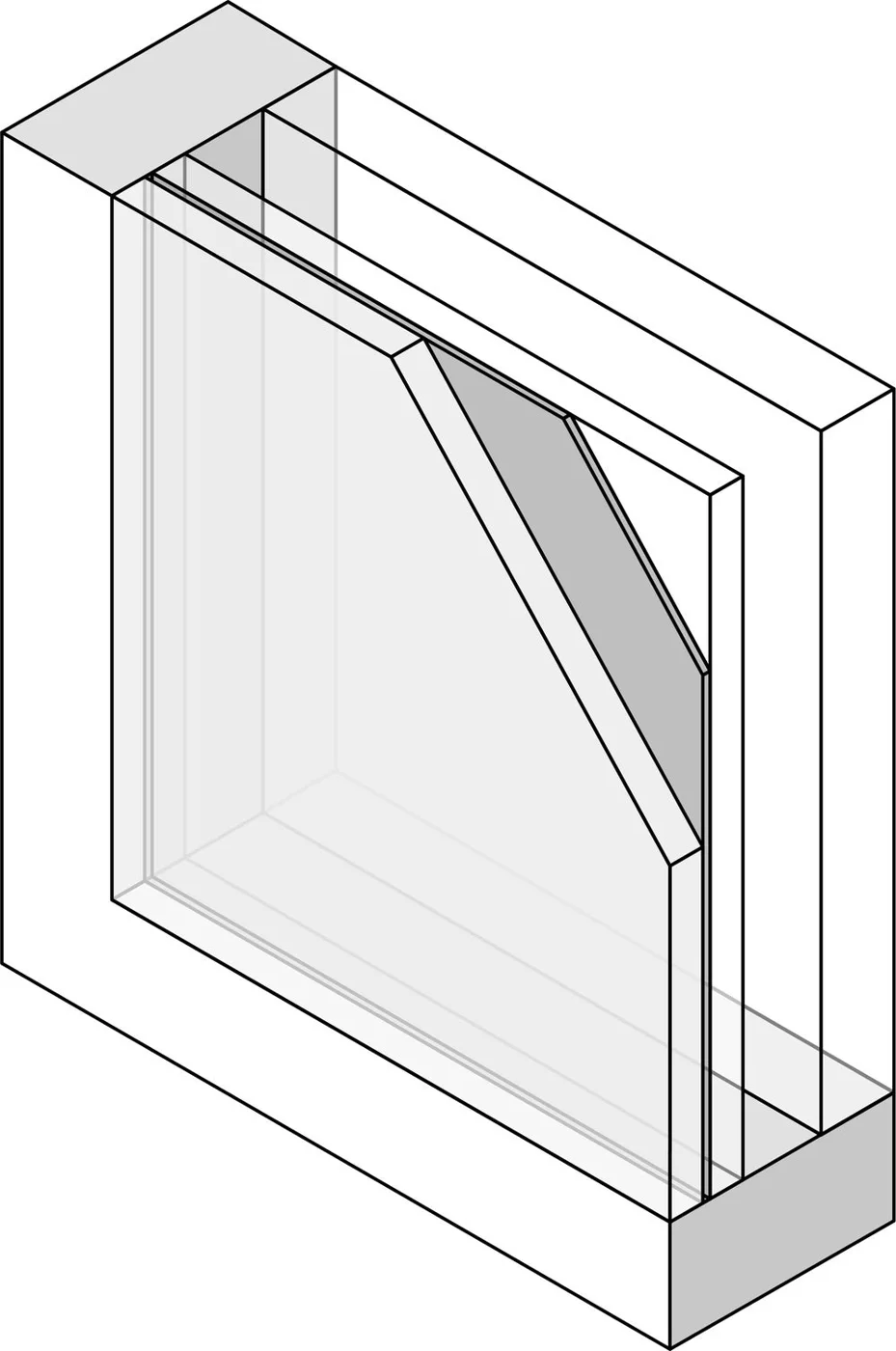

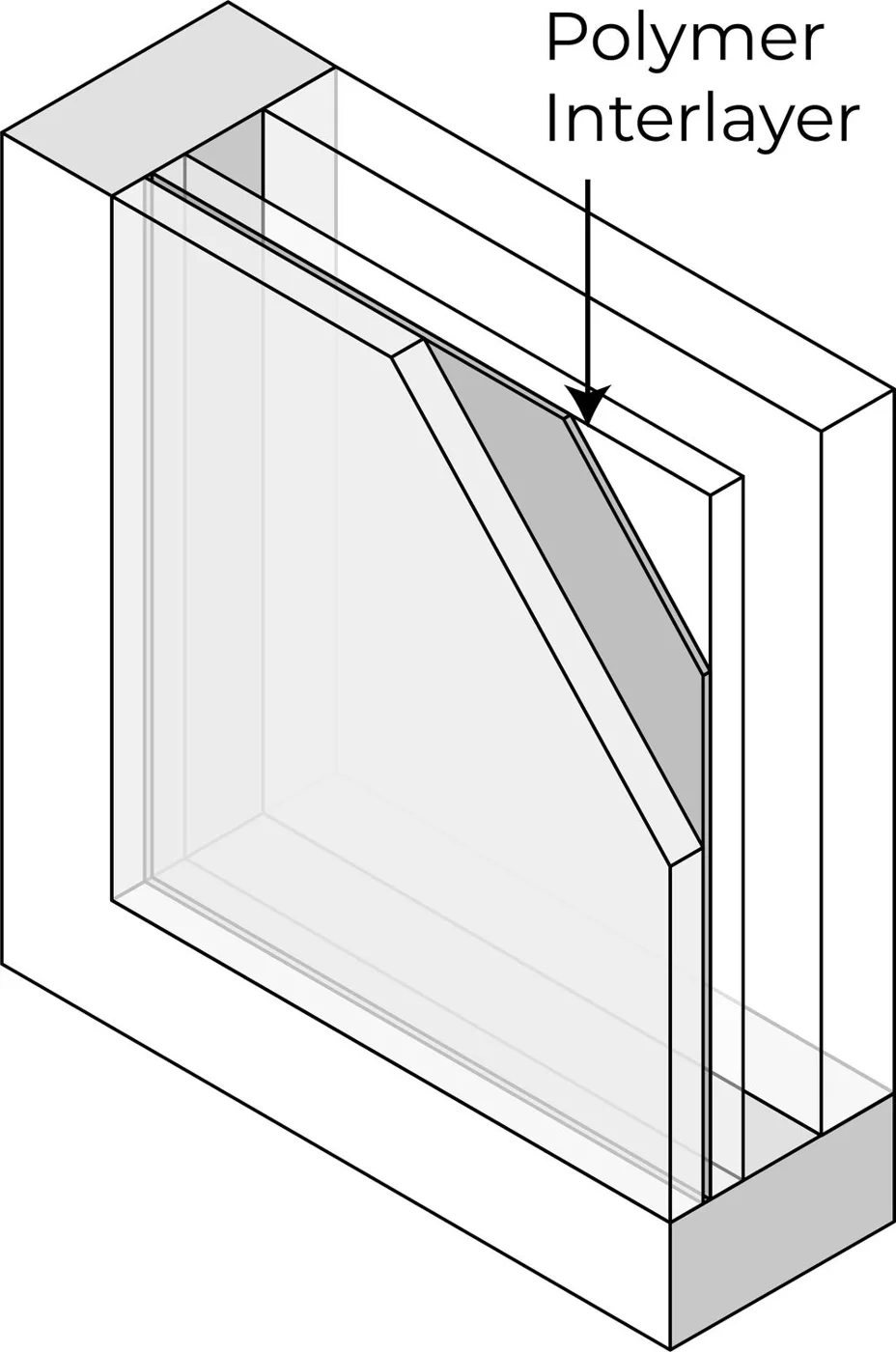

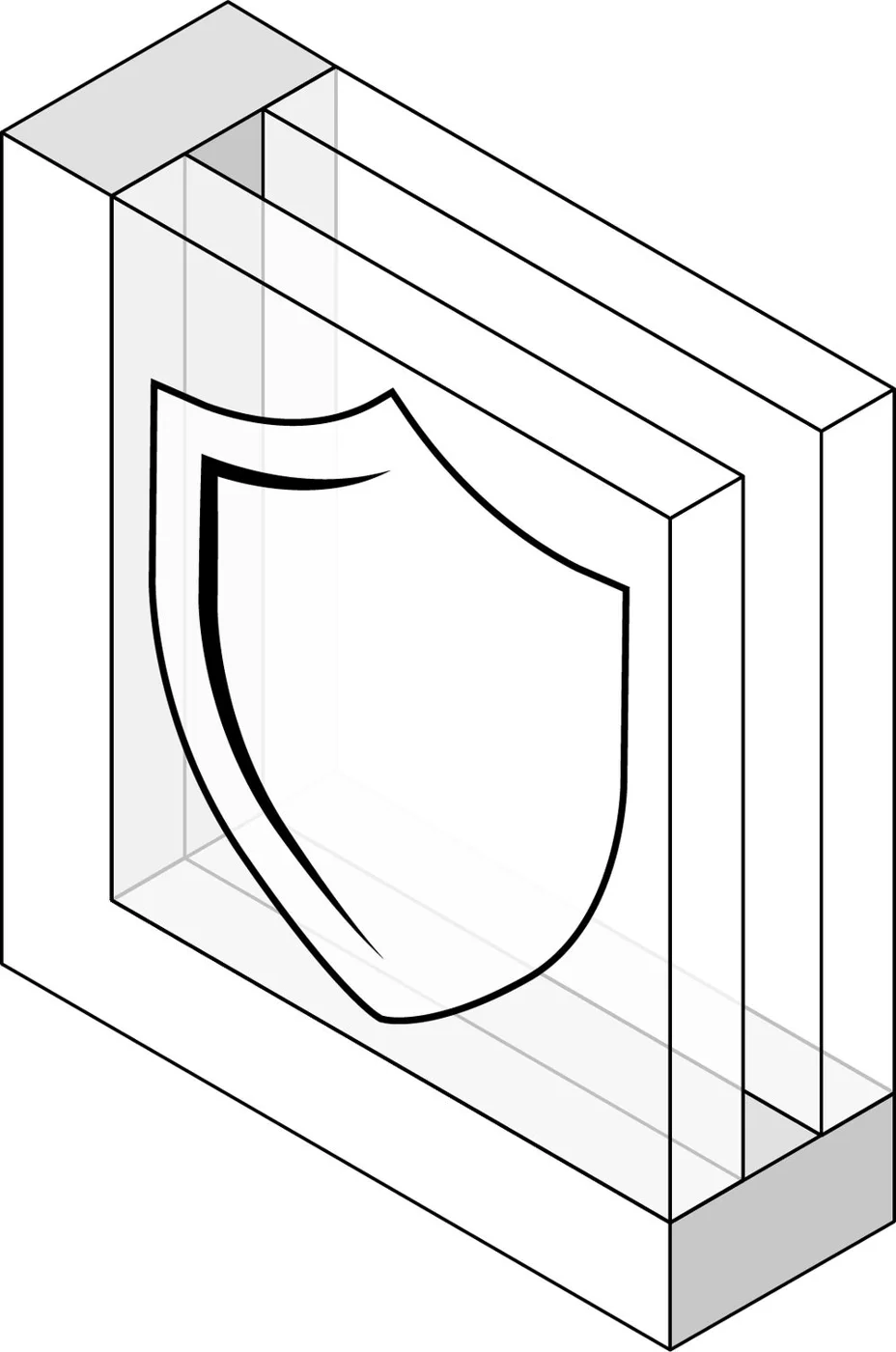

Glass

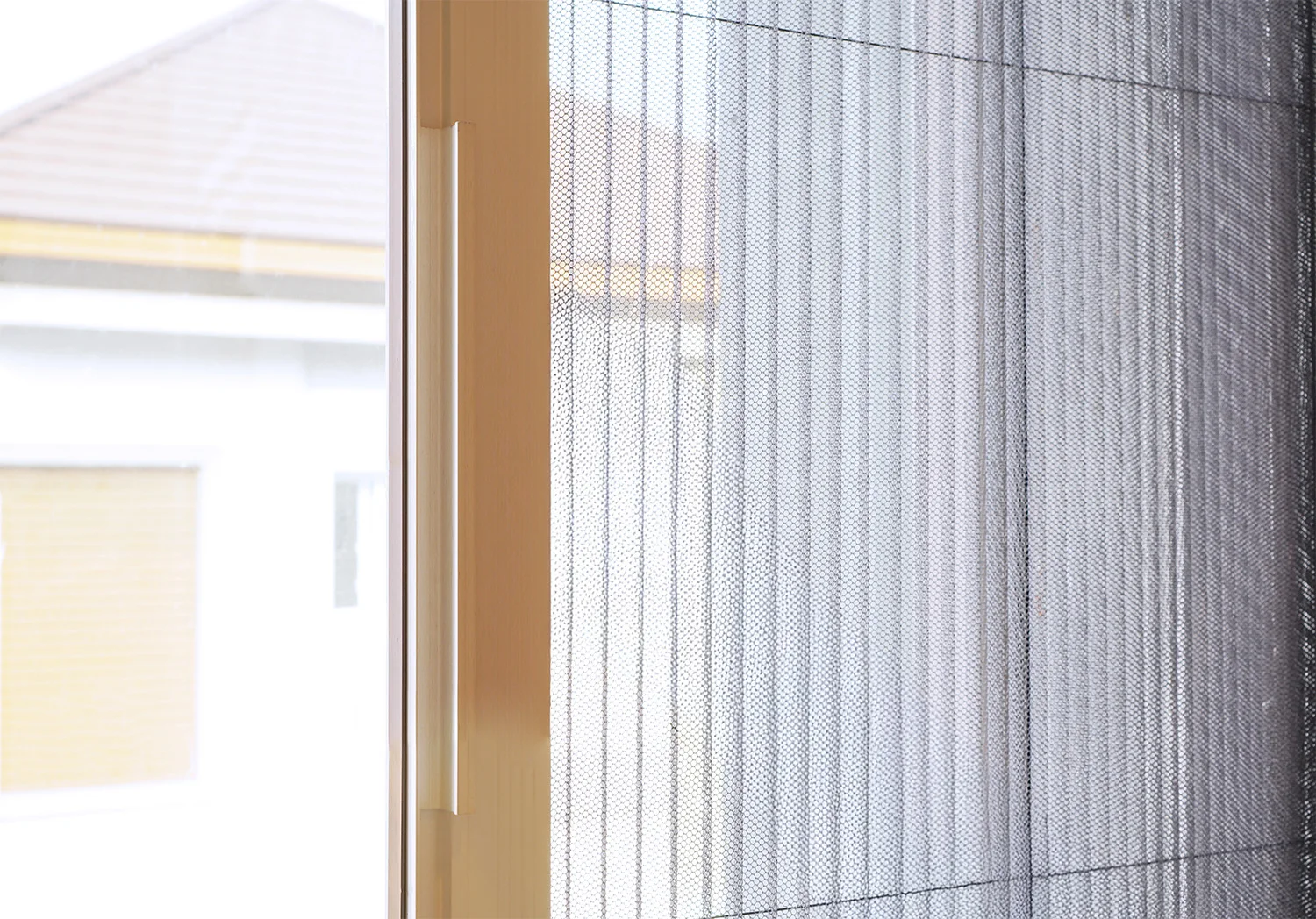

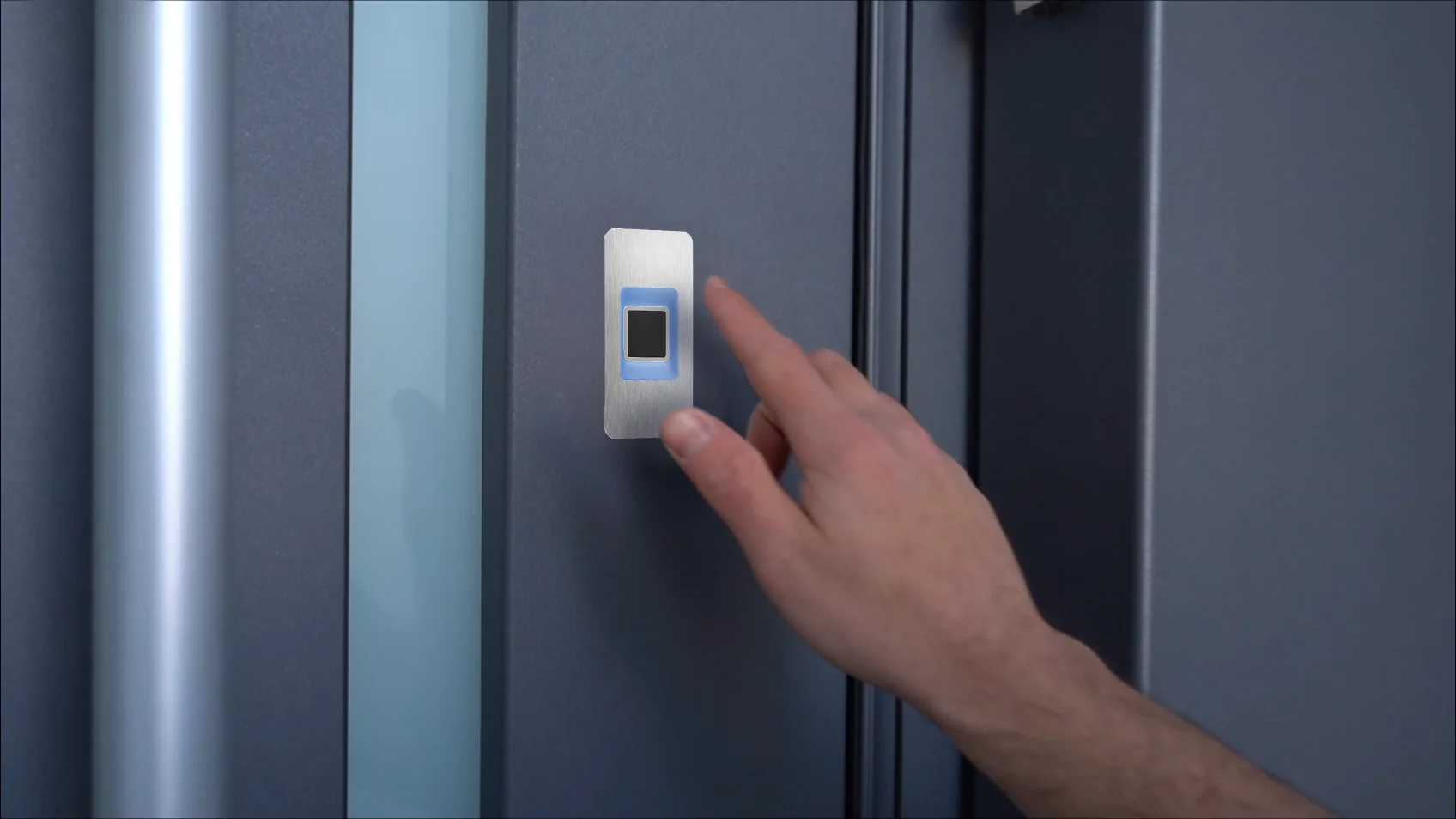

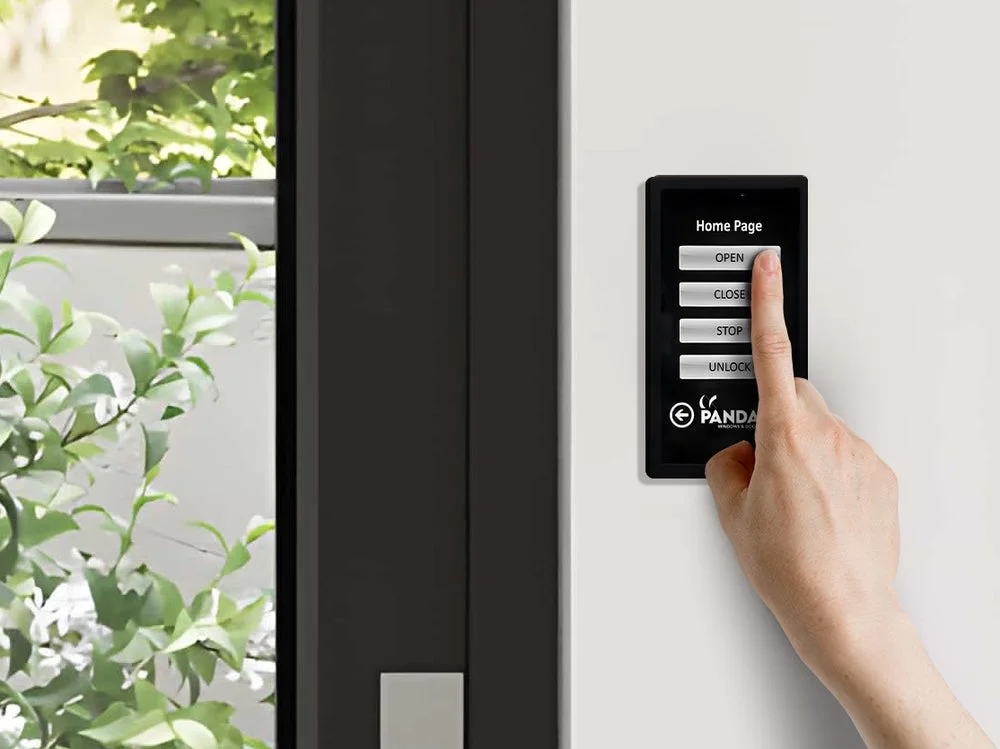

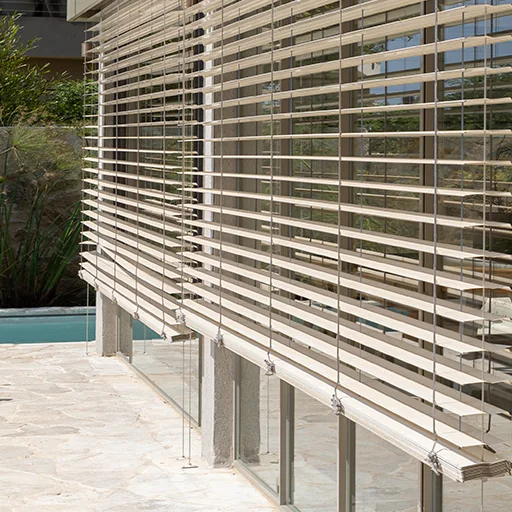

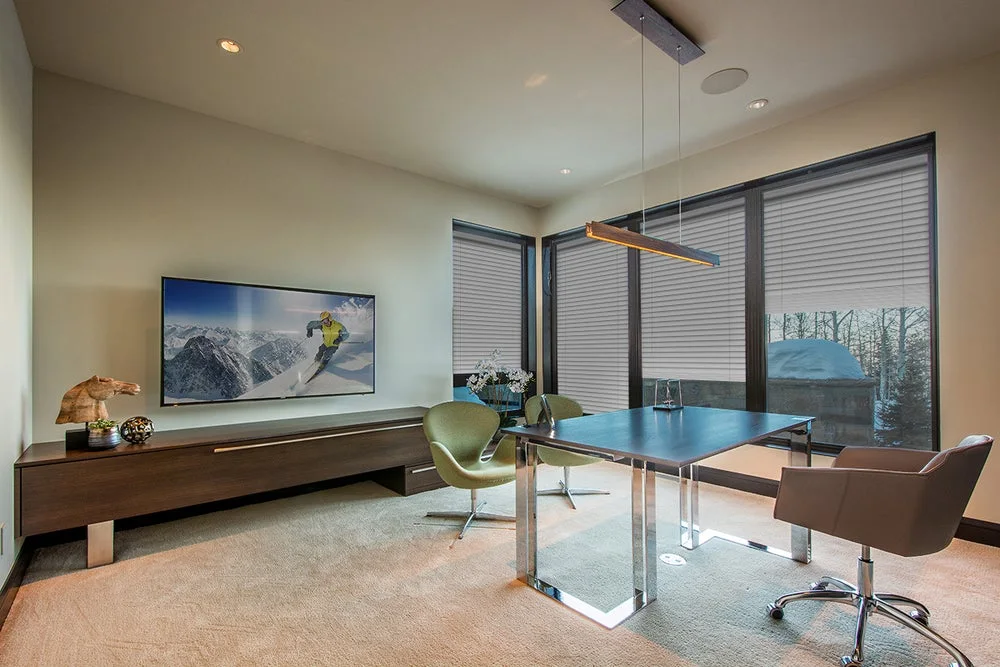

Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- -
- SHGC
- -
- Impact Rated
- Yes
- AAMA Tested
- -
- Design Pressure (psf)
- ±100.3
- Air Infiltration (cfm/ft2)
- 0.2
- Water Penetration Resistance (psf)
- 15.0
- Structural Test Pressure (psf)
- ±150.4
- Florida Approval #
- 28350.1.
Specifications
- Maximum Panel Height
- 252"
- Minimum Panel Height
- 36"
- Maximum Panel Width
- 192"
- Minimum Panel Width
- 28"
- Maximum Panel Weight
- 1,000 lbs
- Panel Depth
- 2 ¾"
- Maximum Number of Panels
- Unlimited
- Stile
- 3 ¹⁵⁄₁₆"
- Rail
- 3 ¹⁵⁄₁₆"
Design and installation planning
Start with the project address, required positive and negative design pressures, opening dimensions and substrate. The approval number and approved installation detail must match the exact system being quoted.
Your project
Request a quote
All Aluminum IMPACT (LIS.10). Start with the project address, required positive and negative design pressures, opening dimensions and substrate. The approval number and approved installation detail must match the exact system being quoted.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
