All Aluminum Thermally Broken Casement Window (TIS.67)
Explore All Aluminum Thermally Broken Casement Window (TIS.67) for impact-rated projects. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for impact-rated projects
This thermally broken impact-resistant casement window offers enhanced insulation and robust protection, ensuring smooth operation and a modern aesthetic.
All Aluminum Thermally Broken Casement Window (TIS.67): maximum panel height 96"; maximum panel width 40"; stile 3 ⅜"; style Modern.
Start with the project address, required positive and negative design pressures, opening dimensions and substrate. The approval number and approved installation detail must match the exact system being quoted.
This system appears in the impact-rated range. Confirm the exact approval, size, glazing, substrate and anchoring for your project. General size limits do not establish an approved impact configuration.

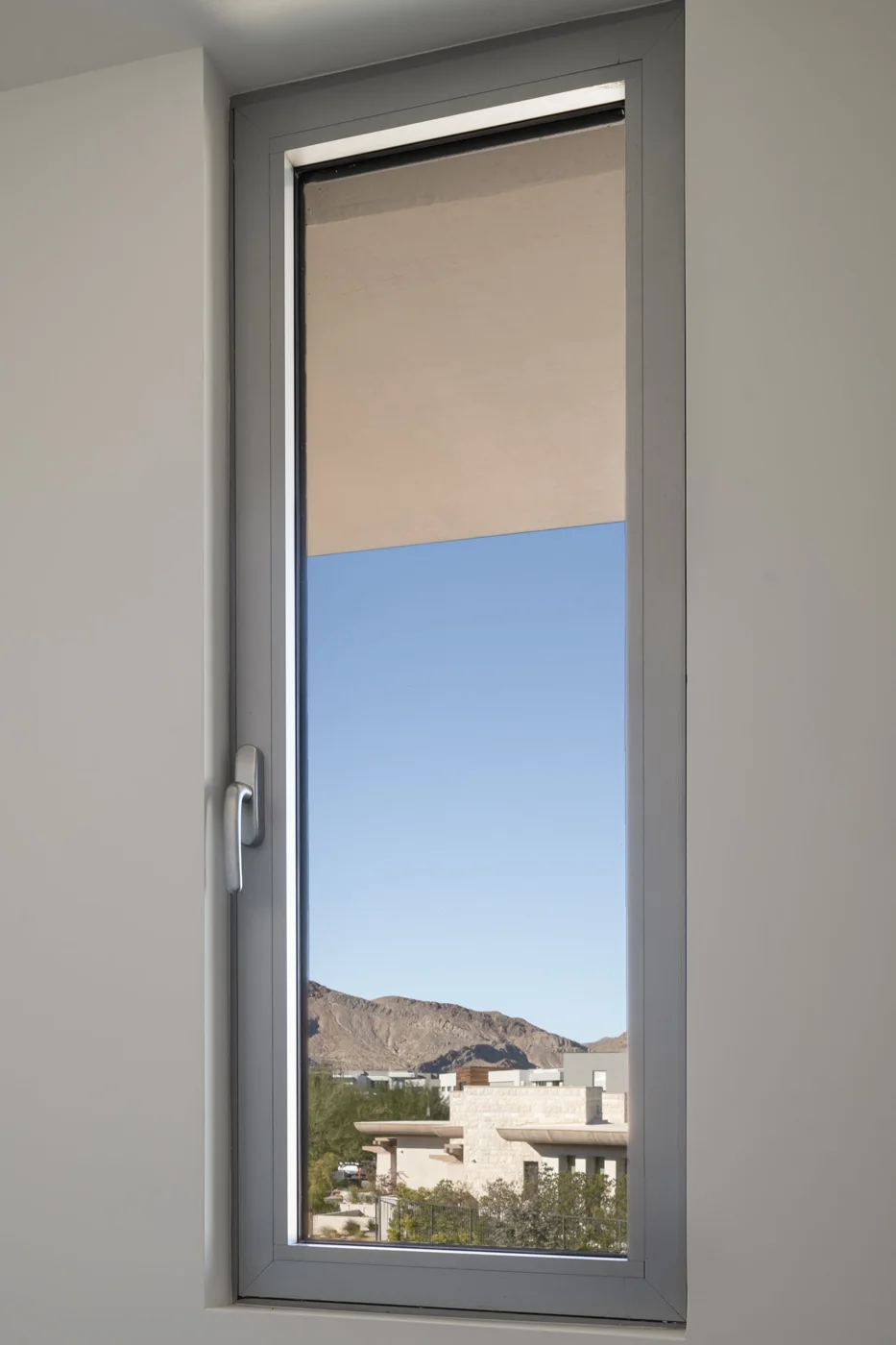

Photography & design details

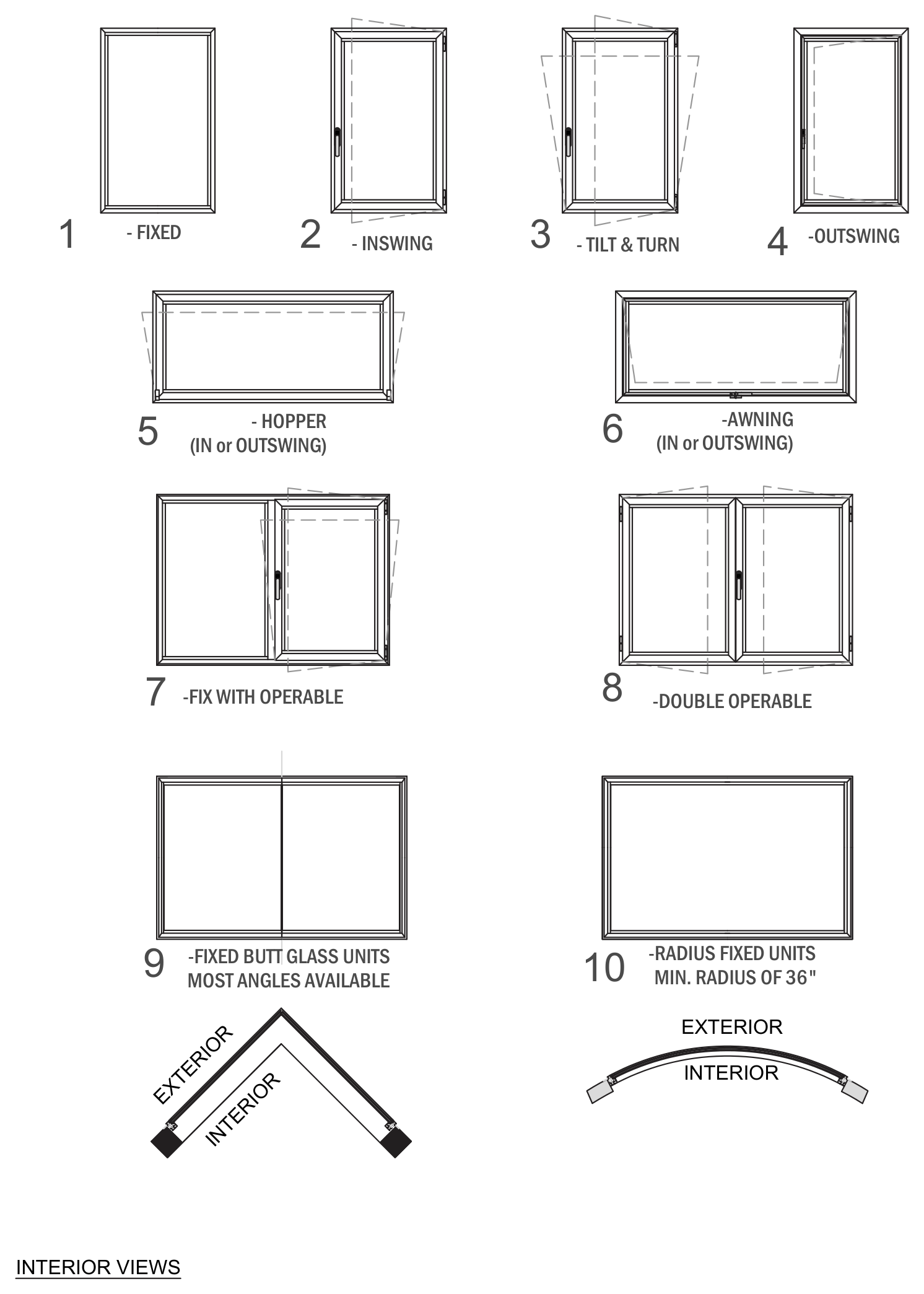

Configuration drawings and planning details
Read the illustrated operation and frame detail alongside the exact window model. Series drawings can show several window types; select the operating arrangement for this opening and confirm its dimensions, glass and hardware. The wall opening, outside frame and visible glass dimensions serve different purposes and should be recorded separately.
Use the drawings to discuss All Aluminum Thermally Broken Casement Window (TIS.67) with your installer. Final project drawings and applicable installation instructions govern the ordered assembly.
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes

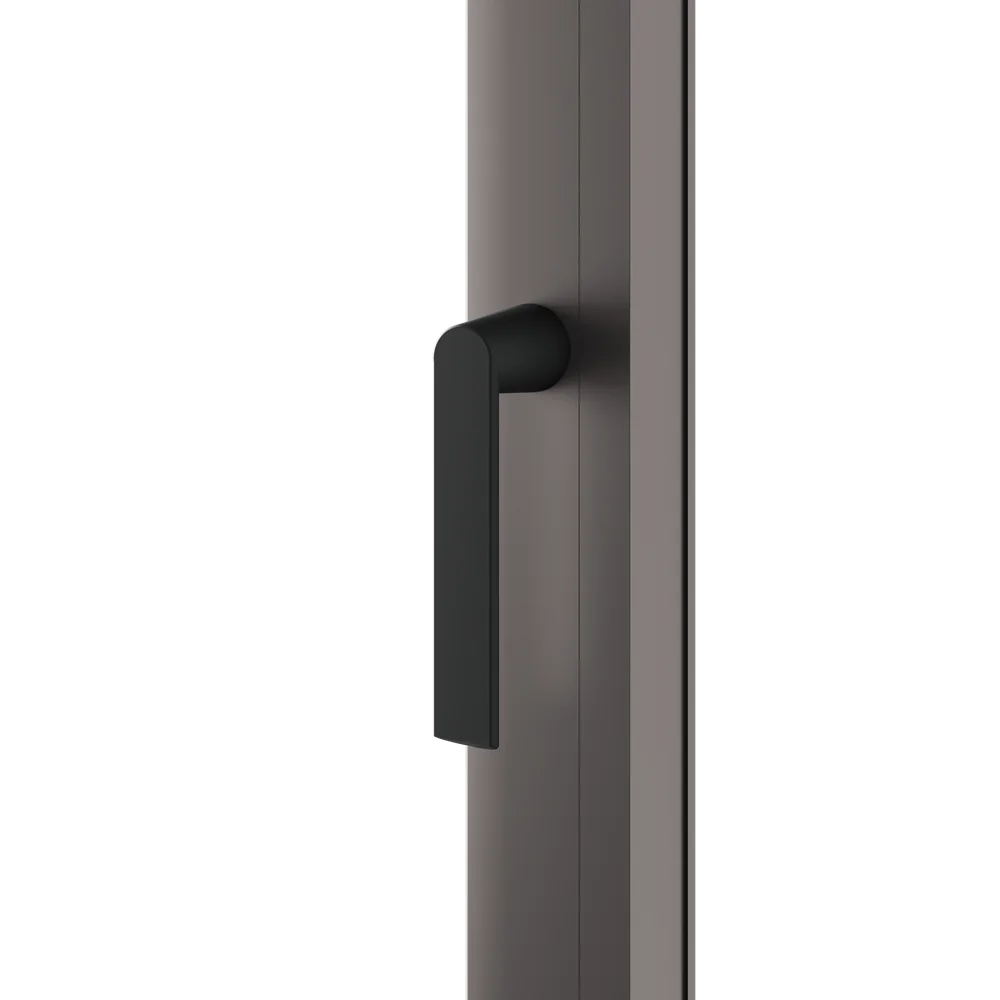

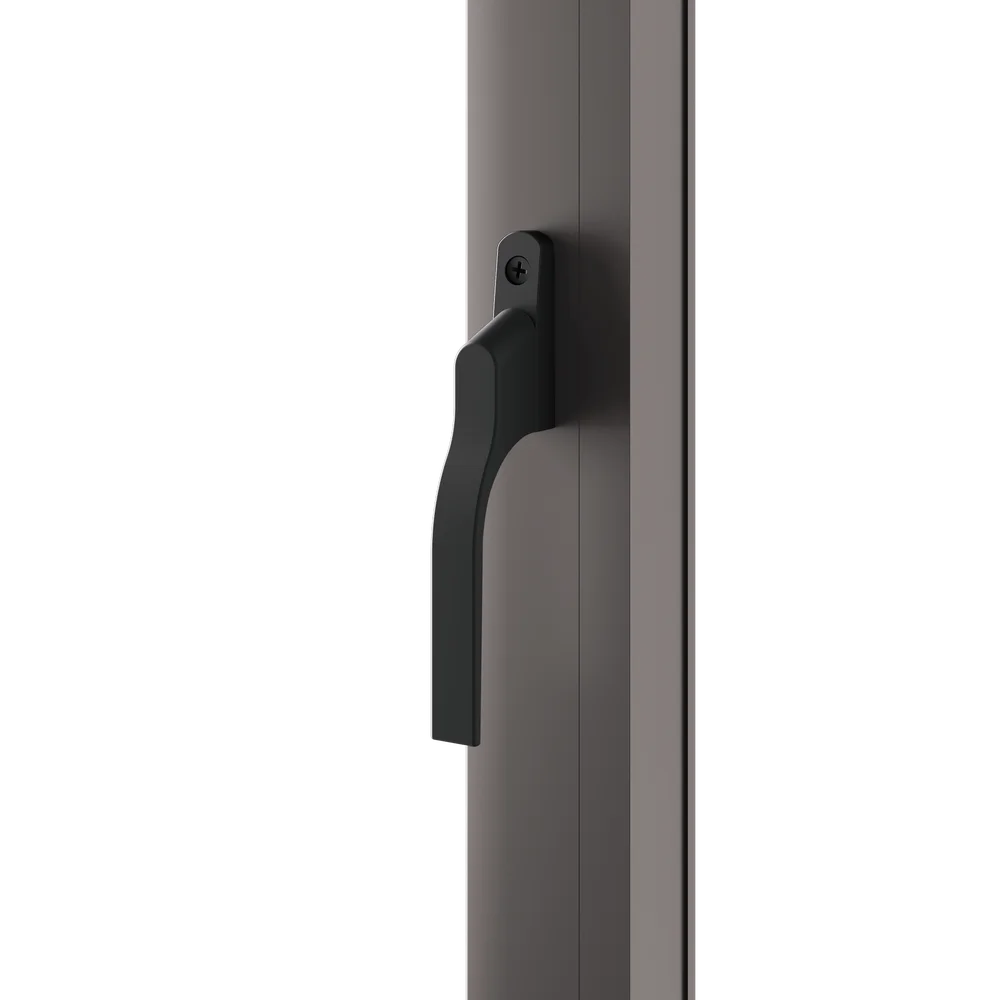

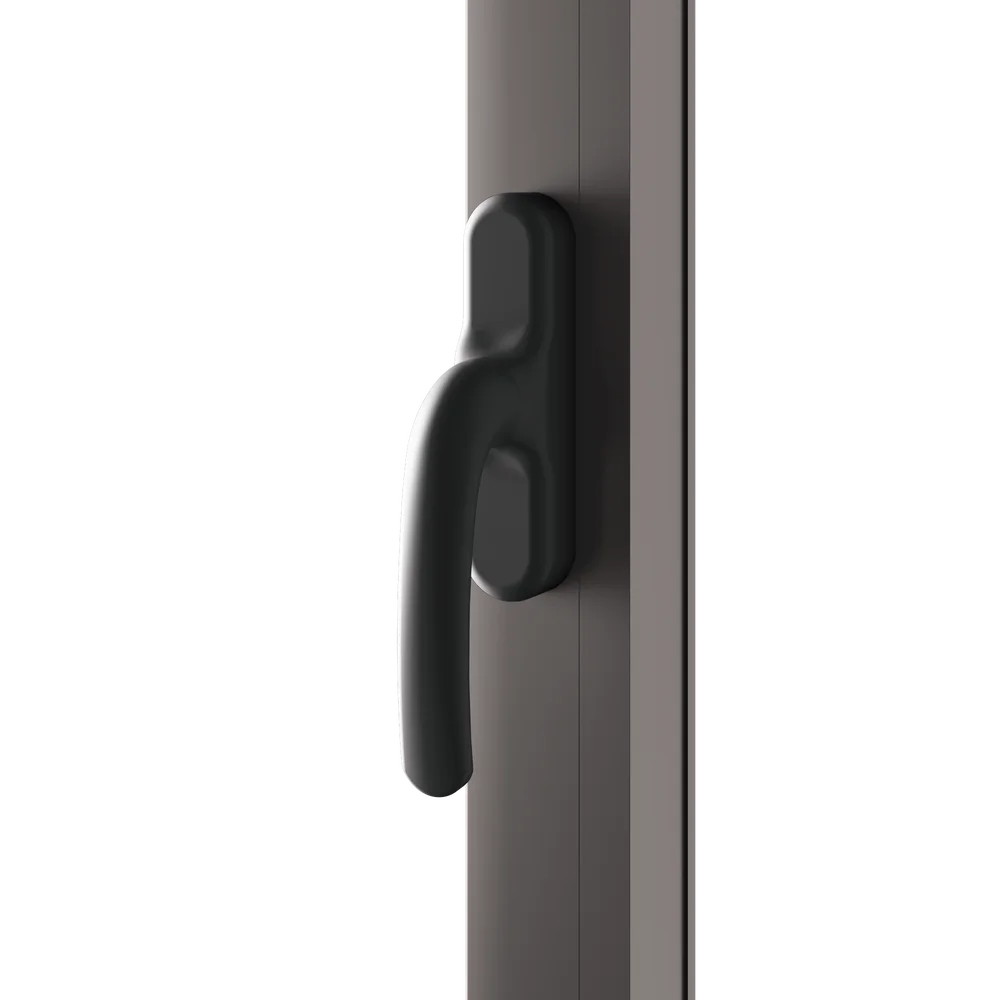

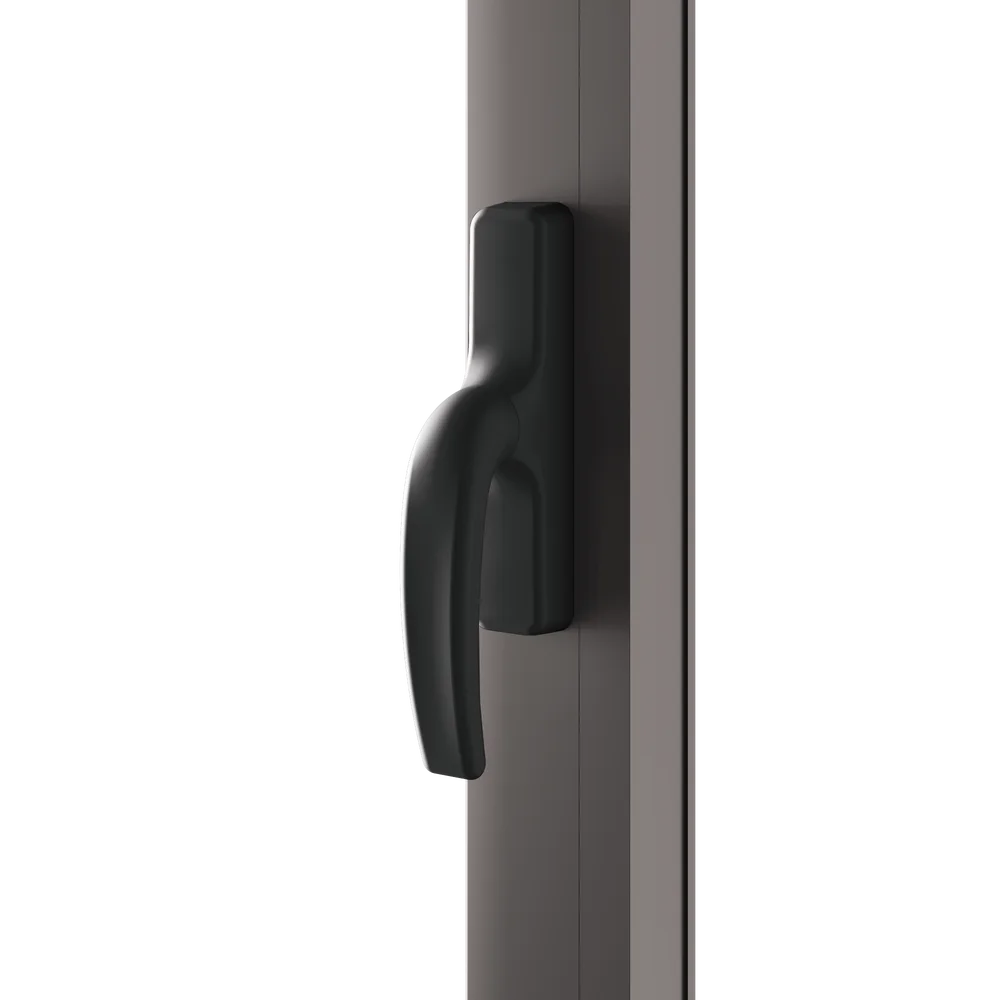

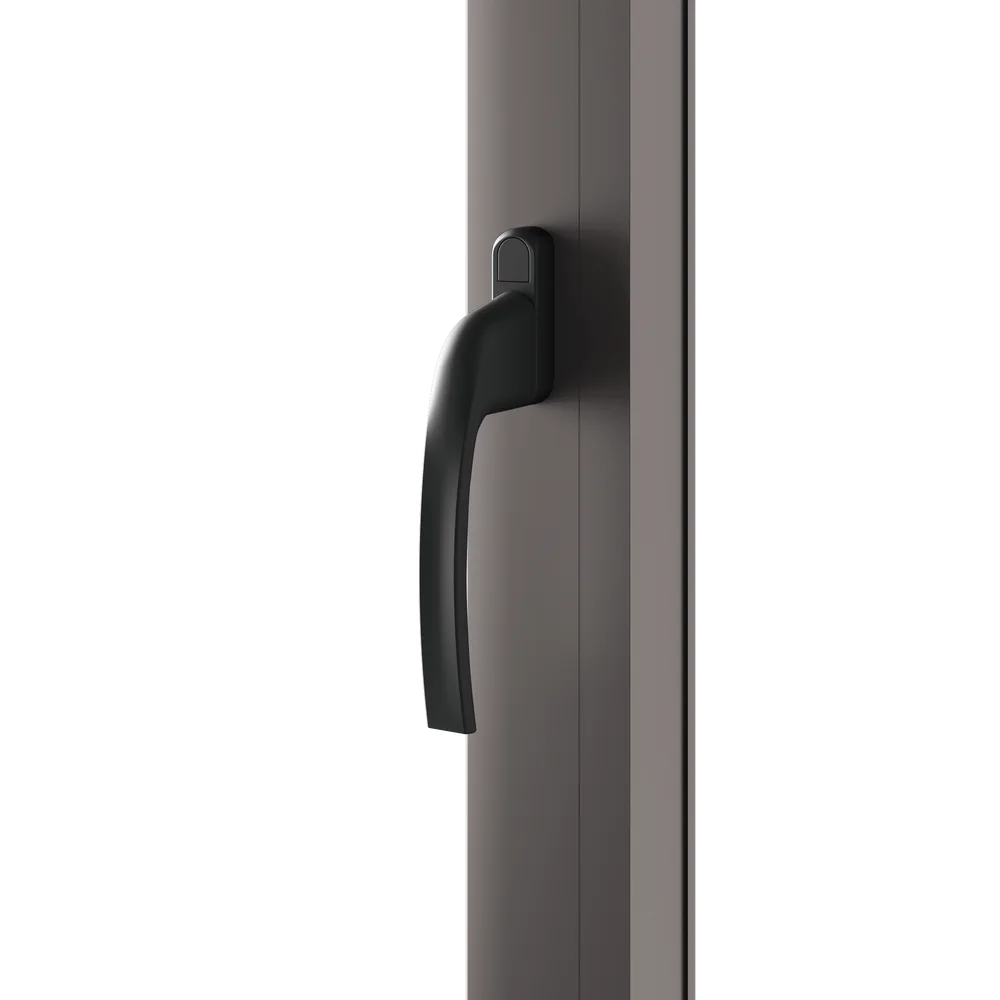

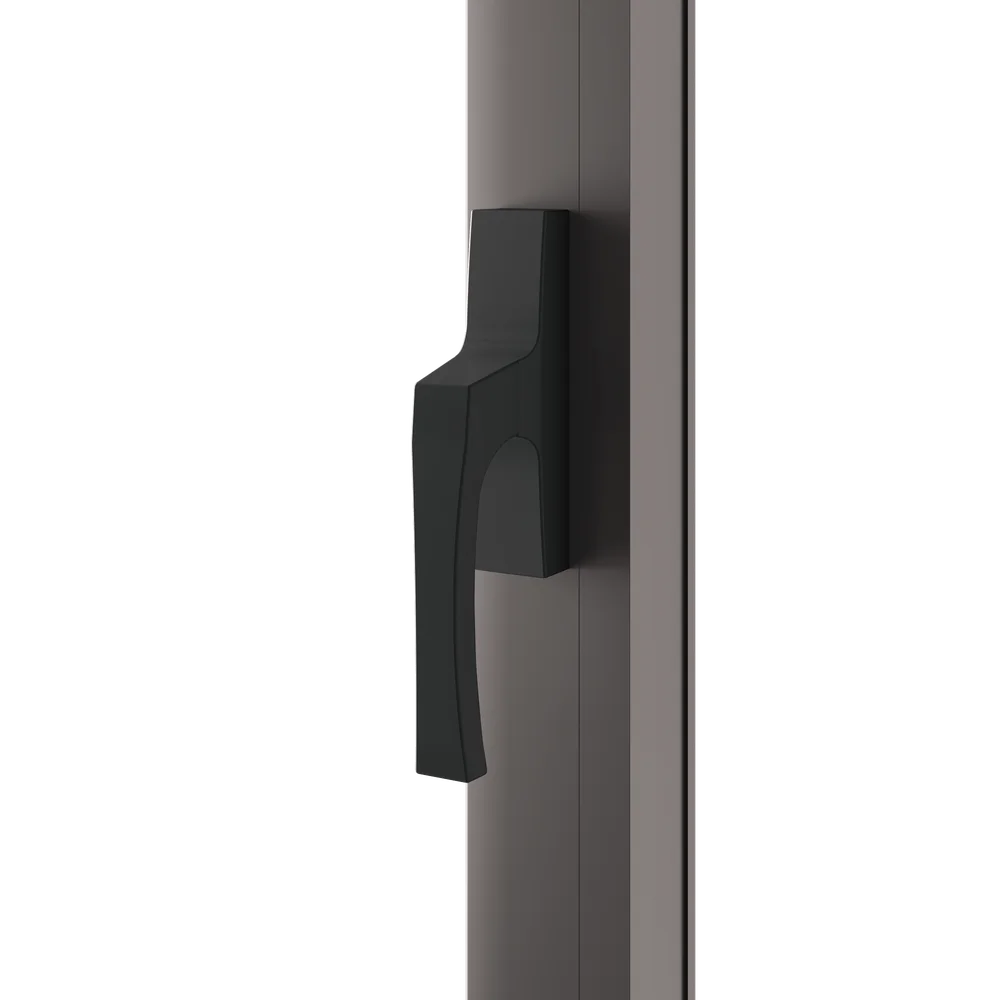

Handles
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- -
- SHGC
- -
- Impact Rated
- Yes
- AAMA Tested
- -
- Design Pressure (psf)
- -
- Air Infiltration (cfm/ft2)
- -
- Water Penetration Resistance (psf)
- -
- Structural Test Pressure (psf)
- -
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- 96"
- Minimum Panel Height
- 18"
- Maximum Panel Width
- 40"
- Minimum Panel Width
- 18"
- Maximum Panel Weight
- -
- Panel Depth
- 3 ¹⁄₁₆"
- Maximum Number of Panels
- Unlimited
- Stile
- 3 ⅜"
- Rail
- 3 ⅜"
Design and installation planning
Start with the project address, required positive and negative design pressures, opening dimensions and substrate. The approval number and approved installation detail must match the exact system being quoted.
Plan the opening
Your project
Request a quote
All Aluminum Thermally Broken Casement Window (TIS.67). Start with the project address, required positive and negative design pressures, opening dimensions and substrate. The approval number and approved installation detail must match the exact system being quoted.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
Questions about your impact-window project
Direct answers about product selection, custom dimensions, pricing, approvals, delivery, and installation planning.
Can impact windows and doors be ordered in custom sizes?
Yes. Enter the exact opening dimensions and selected product path. The system, glass, finish, pressure requirements, quantity, freight, and installation scope are reviewed together before custom pricing is issued.
Does Impact Windows America support projects nationwide?
Yes. Product selection and project coordination are available nationwide. Freight, permitting, code requirements, site access, and installation availability are confirmed for the project location.
How are online prices different from custom project prices?
Online prices are tied to the exact listed model, size, glass, finish, pressure, and SKU shown. Custom sizes or options require review before a project price and checkout link are issued.
Who confirms the product approval and installation requirements?
The accepted quote identifies the selected system and available documentation. The project contractor or design professional must confirm the opening, pressure, substrate, anchoring, permit, and local installation requirements.
