hinged doors
Steel Thermally Broken (FDMT.50)
Explore Steel Thermally Broken (FDMT.50) for impact-rated projects. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for impact-rated projects
Combining thermal efficiency with a steel frame, this hinged door provides superior insulation and durability, enhancing both style and energy performance.
Steel Thermally Broken (FDMT.50): maximum panel height 144"; maximum panel width 48"; stile 1 ¹³⁄₁₆"; style Modern.
Start with the project address, required positive and negative design pressures, opening dimensions and substrate. The approval number and approved installation detail must match the exact system being quoted.
This system appears in the impact-rated range. Confirm the exact approval, size, glazing, substrate and anchoring for your project. General size limits do not establish an approved impact configuration.

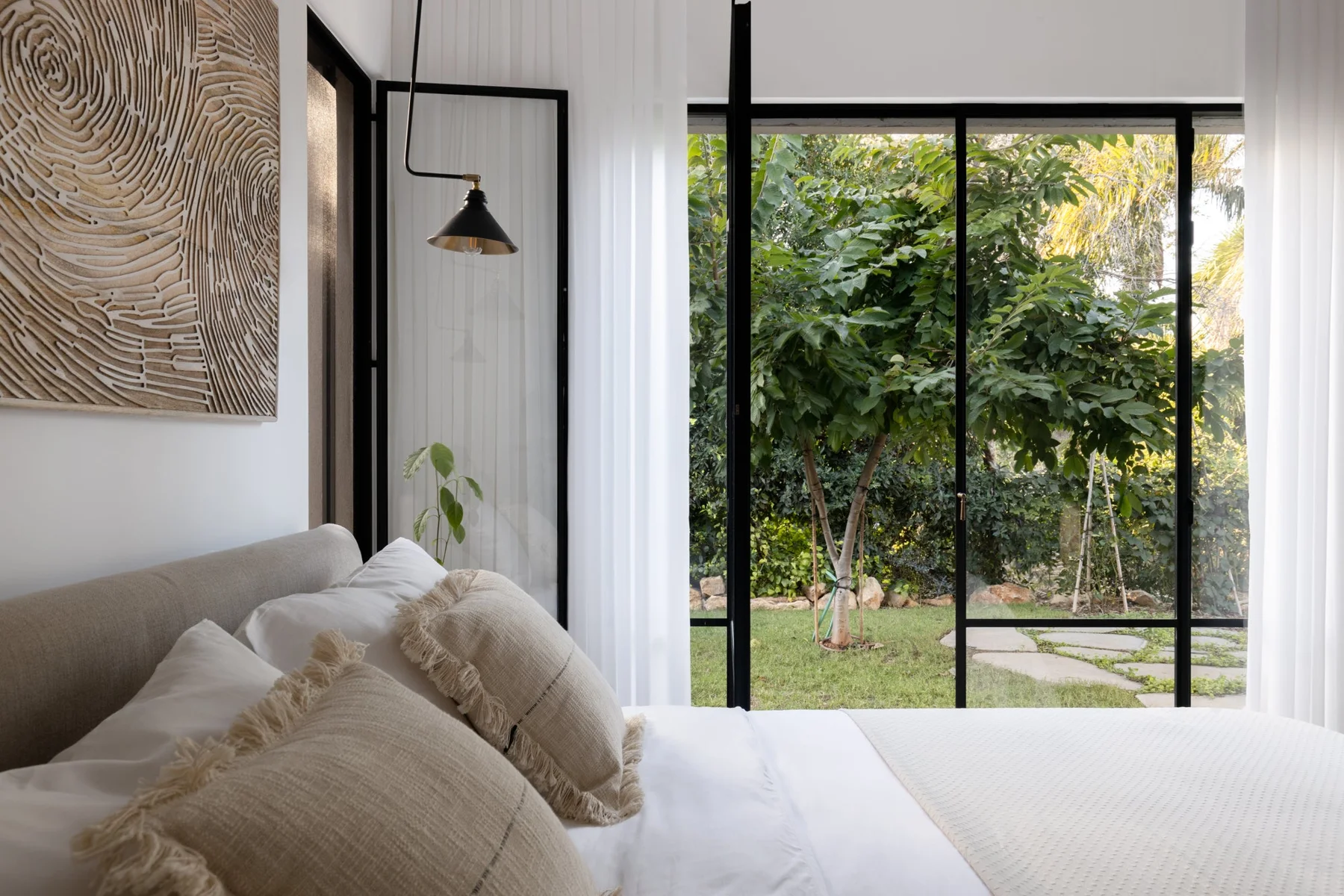

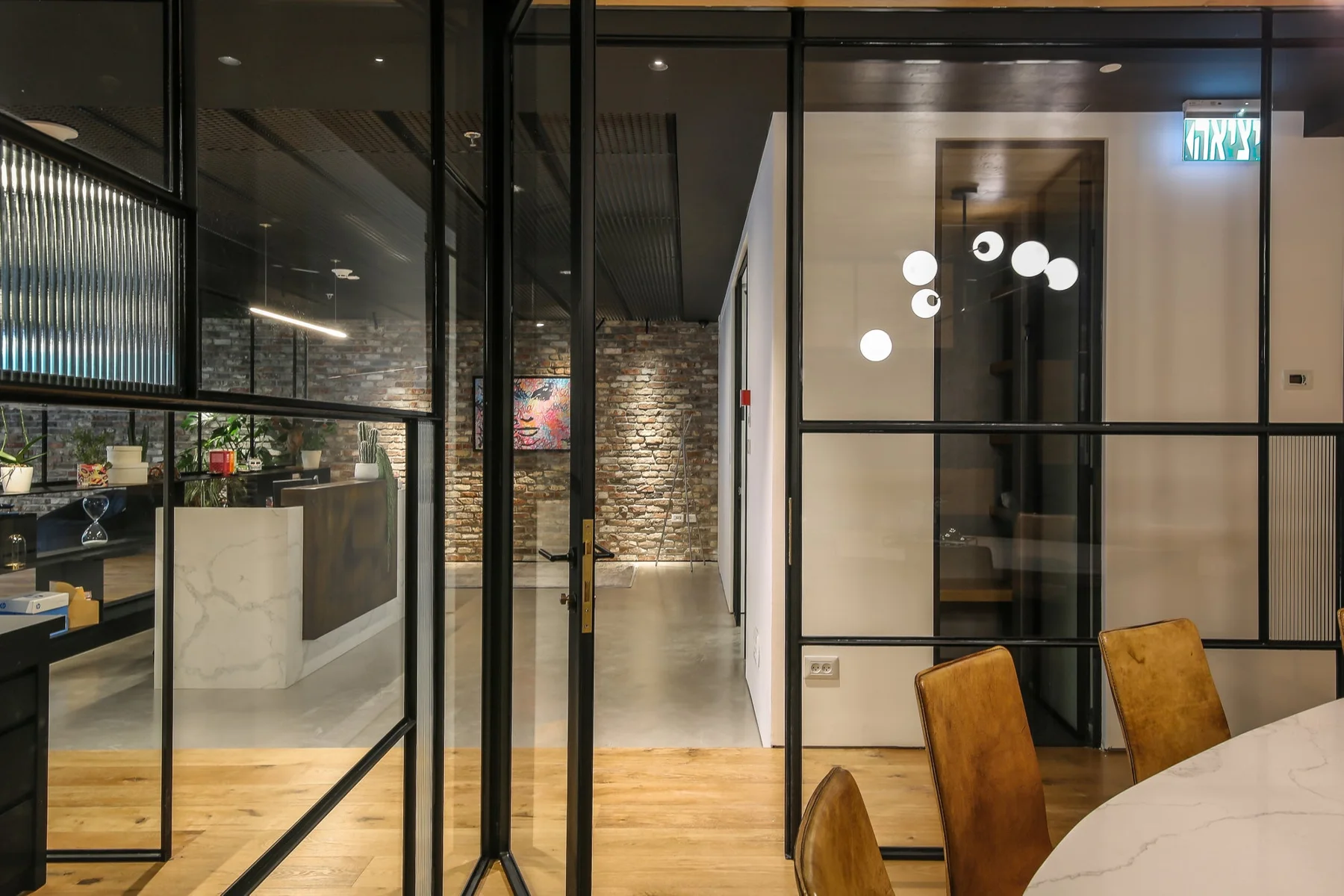

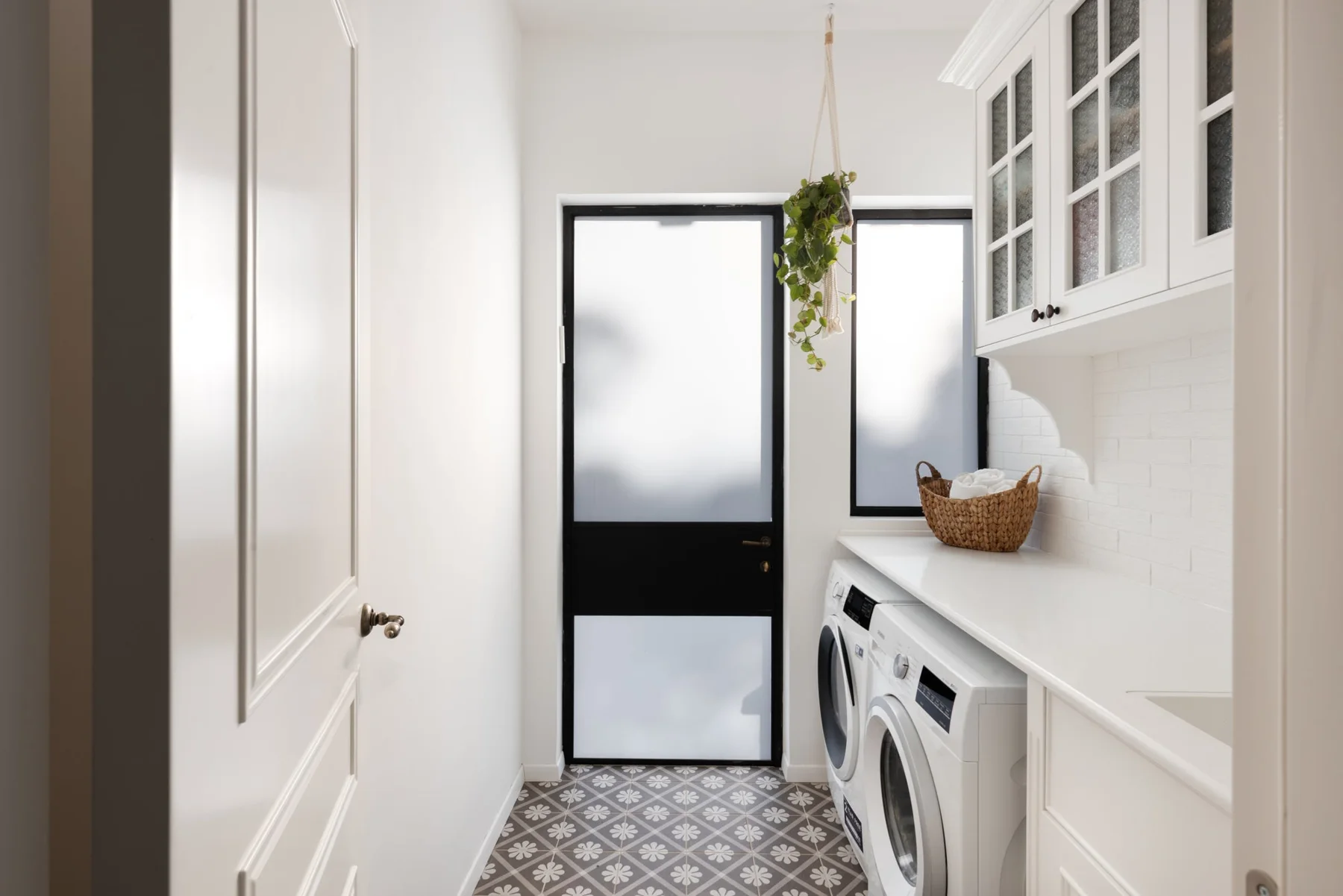

Photography & design details
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes

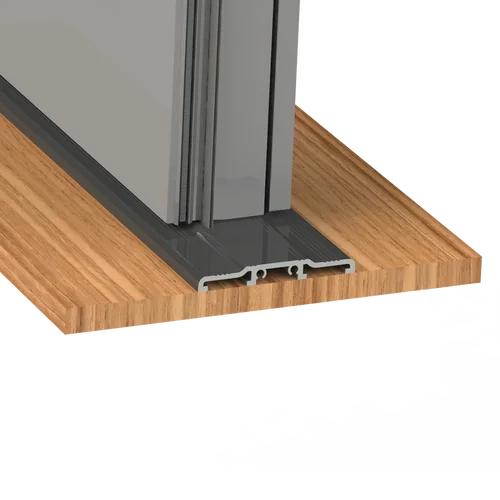

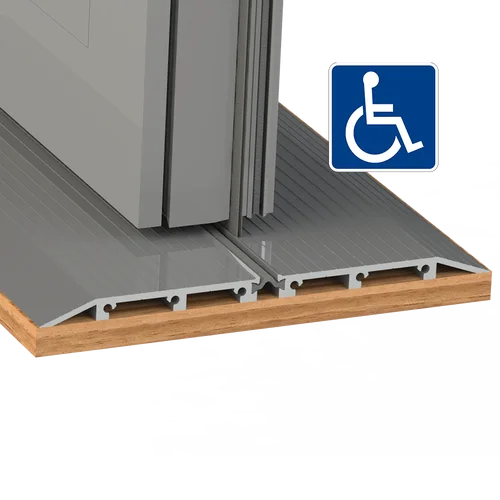

Surface Thresholds
Recessed Thresholds

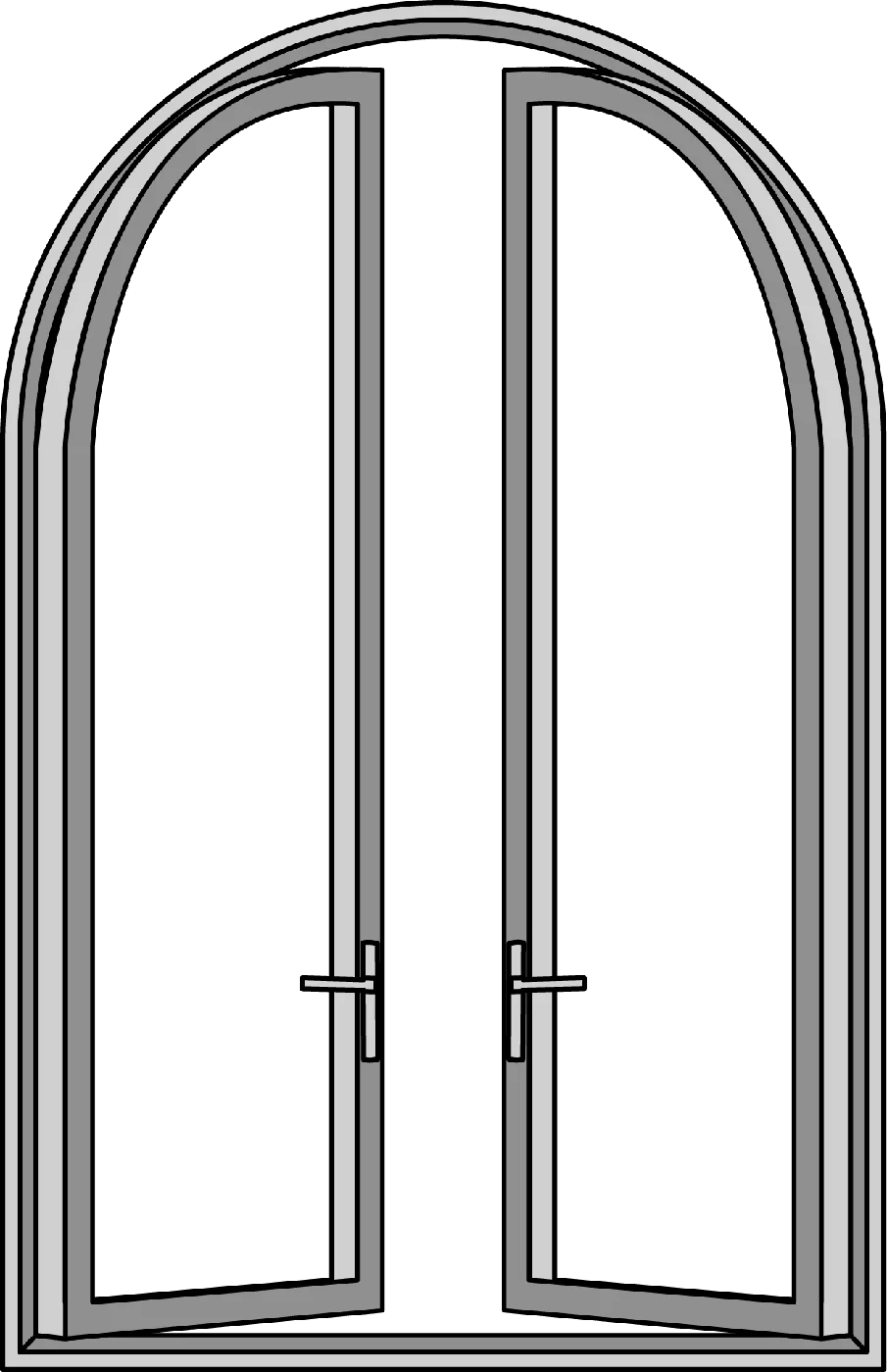

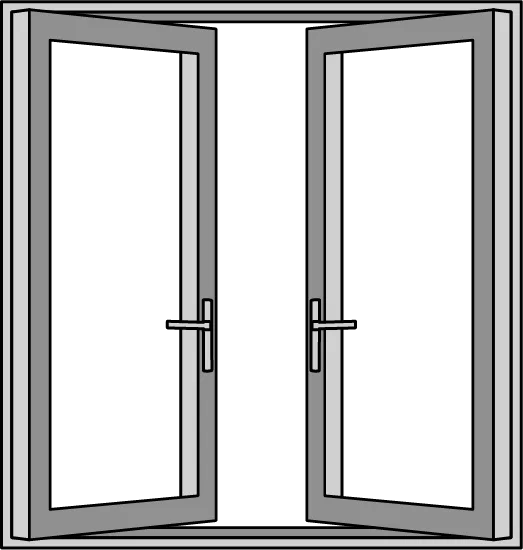

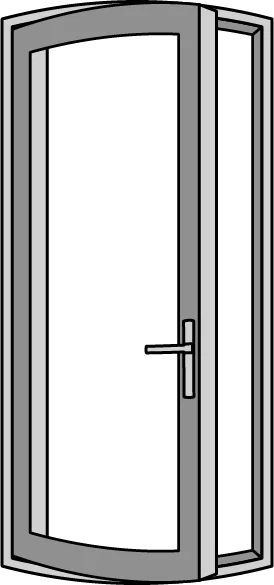

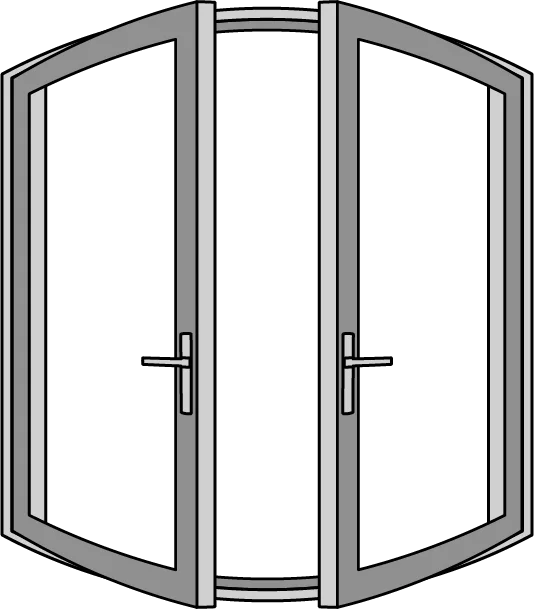

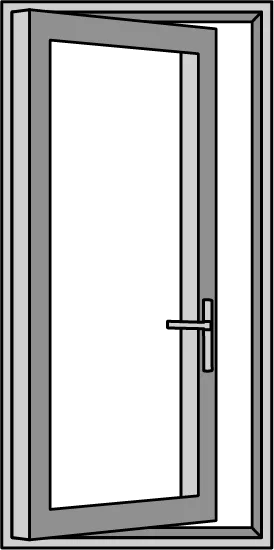

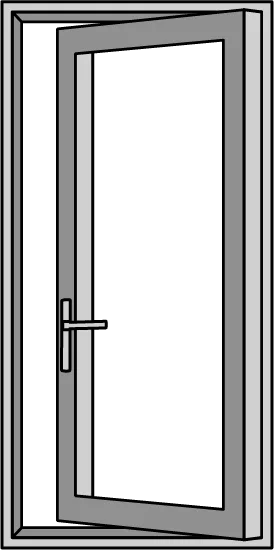

Configurations
Sidelites & Transoms

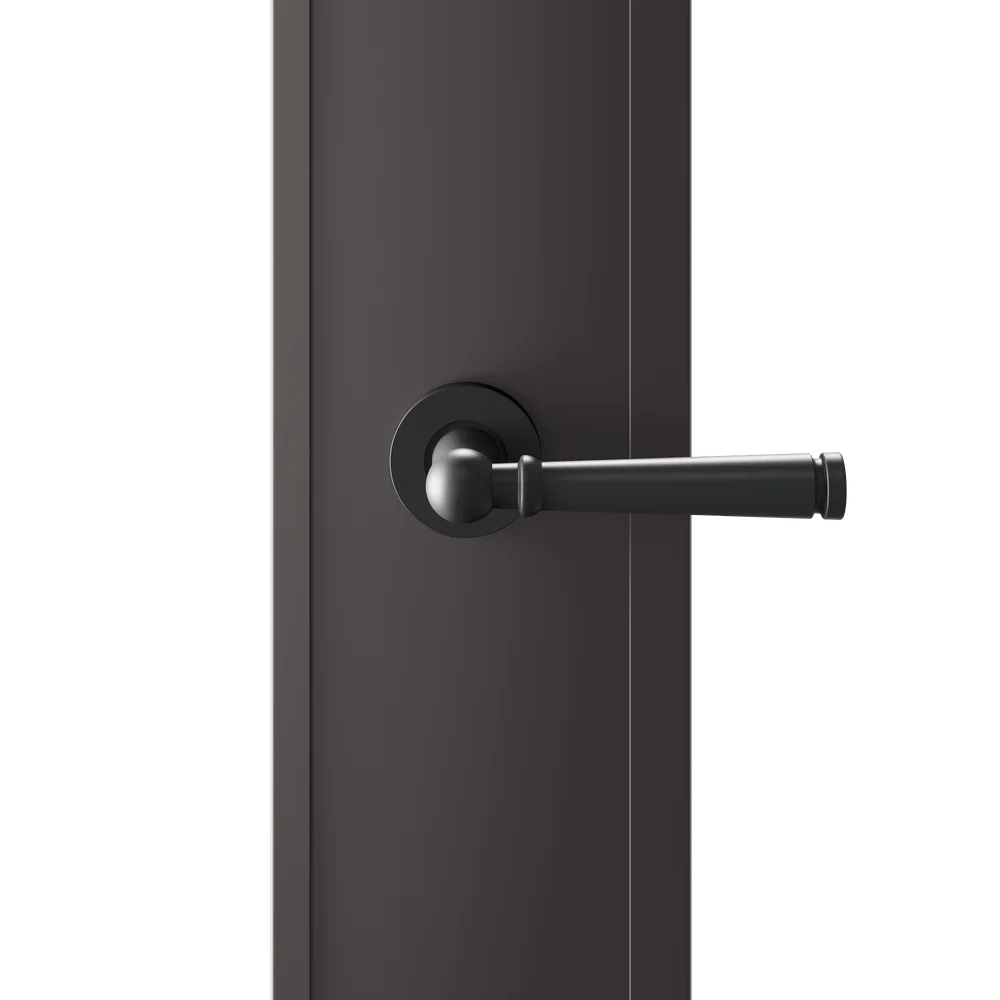

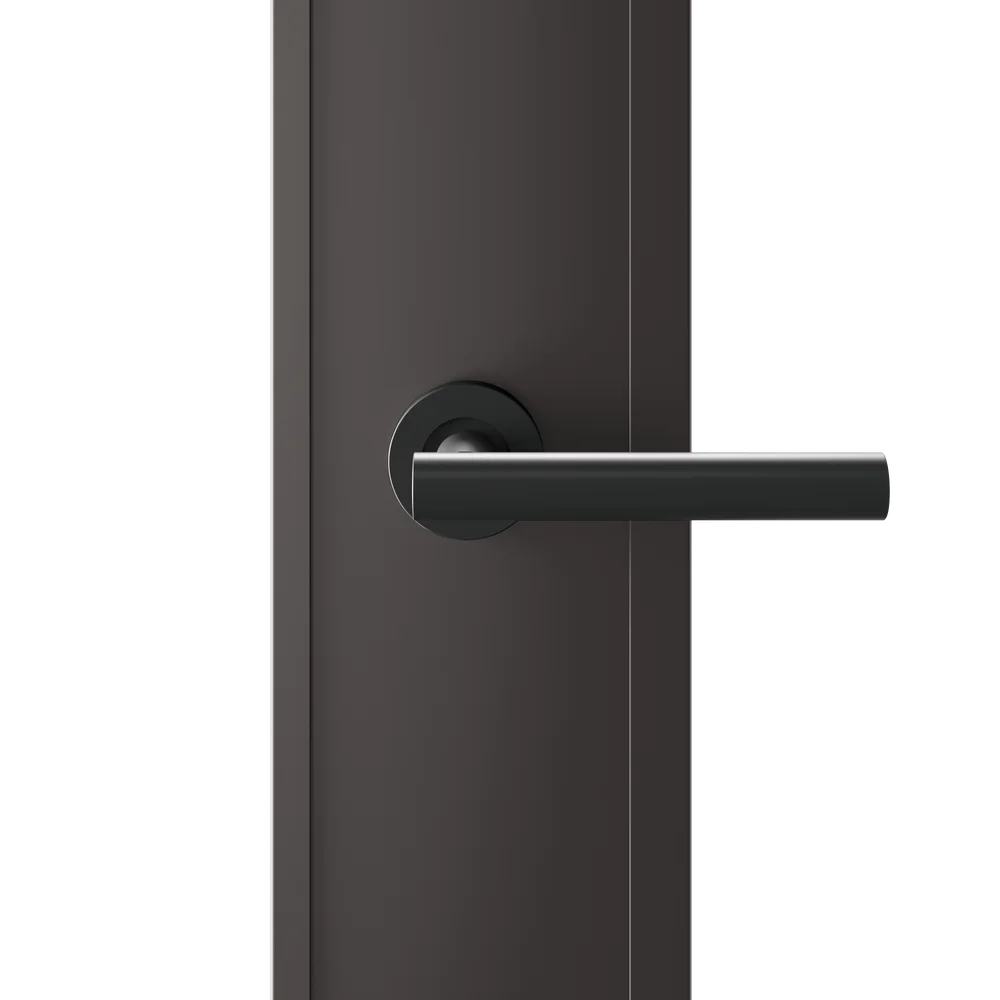

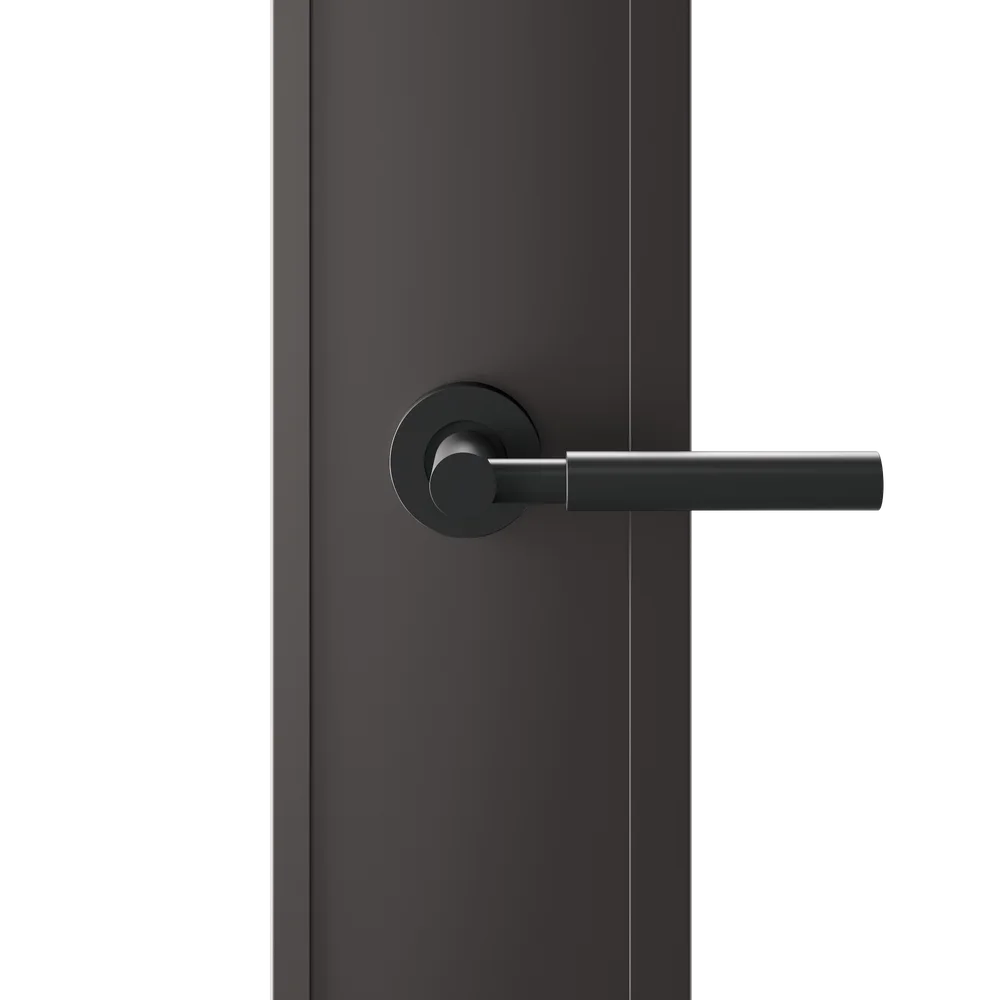

Handles

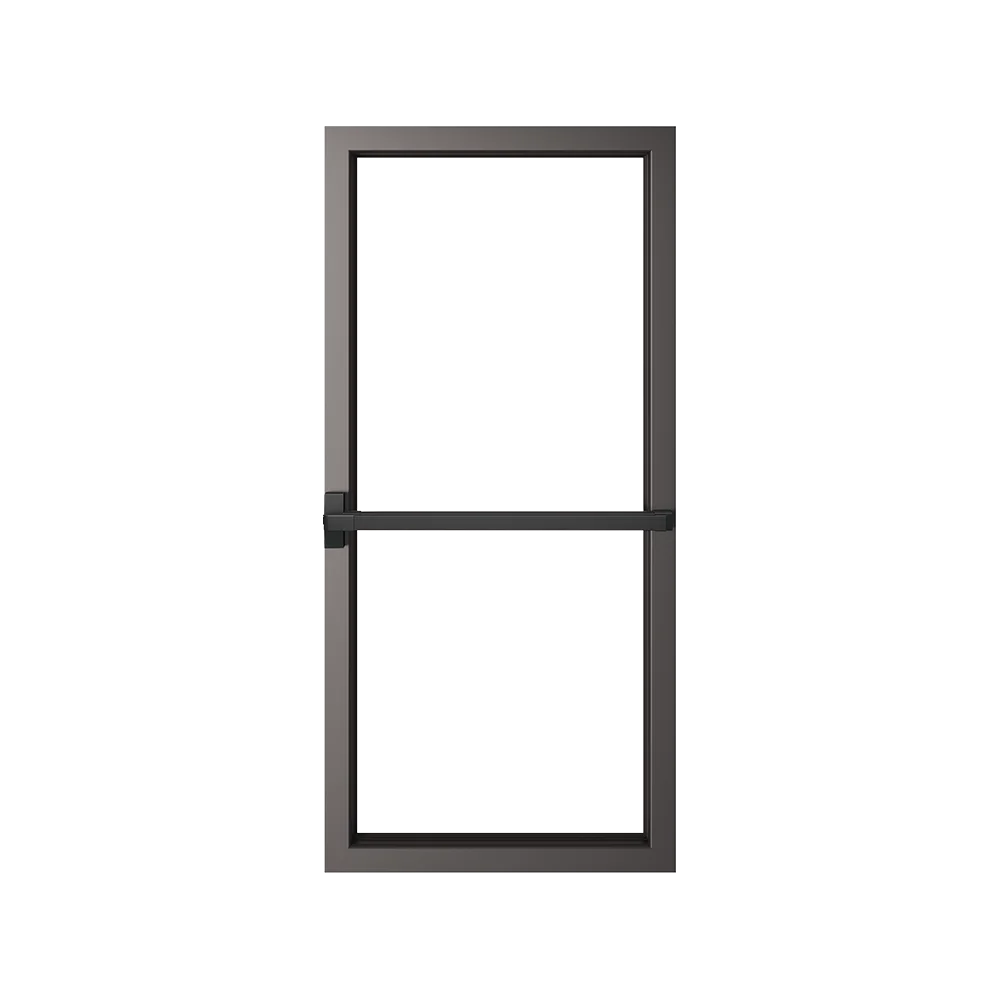

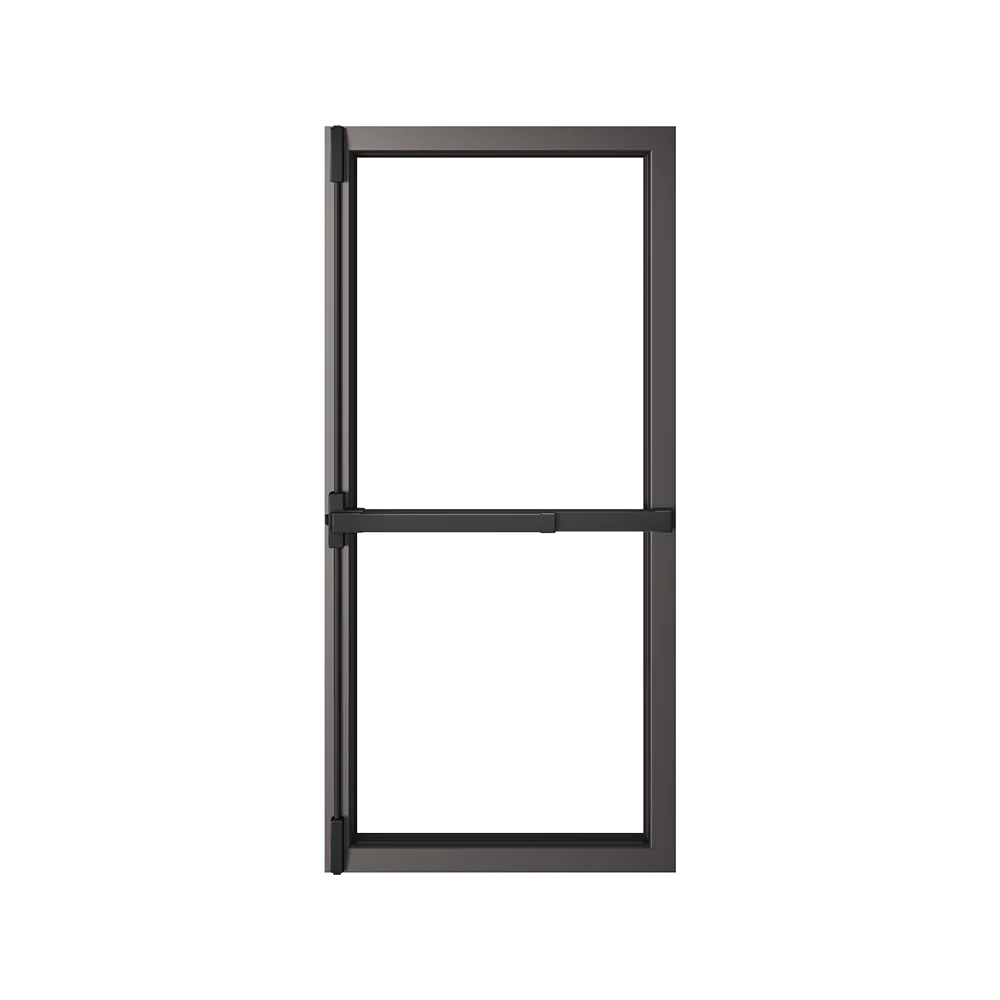

Panic Hardware
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- 0.34
- SHGC
- 0.21
- Impact Rated
- Yes
- AAMA Tested
- Yes
- Design Pressure (psf)
- ±50.13 - outswing
- Air Infiltration (cfm/ft2)
- 0.12 - outswing
- Water Penetration Resistance (psf)
- 7.52 - outswing
- Structural Test Pressure (psf)
- ±75.19 - outswing
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- 144"
- Minimum Panel Height
- 80"
- Maximum Panel Width
- 48"
- Minimum Panel Width
- 30"
- Maximum Panel Weight
- 400 lbs
- Panel Depth
- 2 ⅜"
- Maximum Number of Panels
- 2
- Stile
- 1 ¹³⁄₁₆"
- Rail
- 1 ¹³⁄₁₆"
Design and installation planning
Start with the project address, required positive and negative design pressures, opening dimensions and substrate. The approval number and approved installation detail must match the exact system being quoted.
Your project
Request a quote
Steel Thermally Broken (FDMT.50). Start with the project address, required positive and negative design pressures, opening dimensions and substrate. The approval number and approved installation detail must match the exact system being quoted.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
